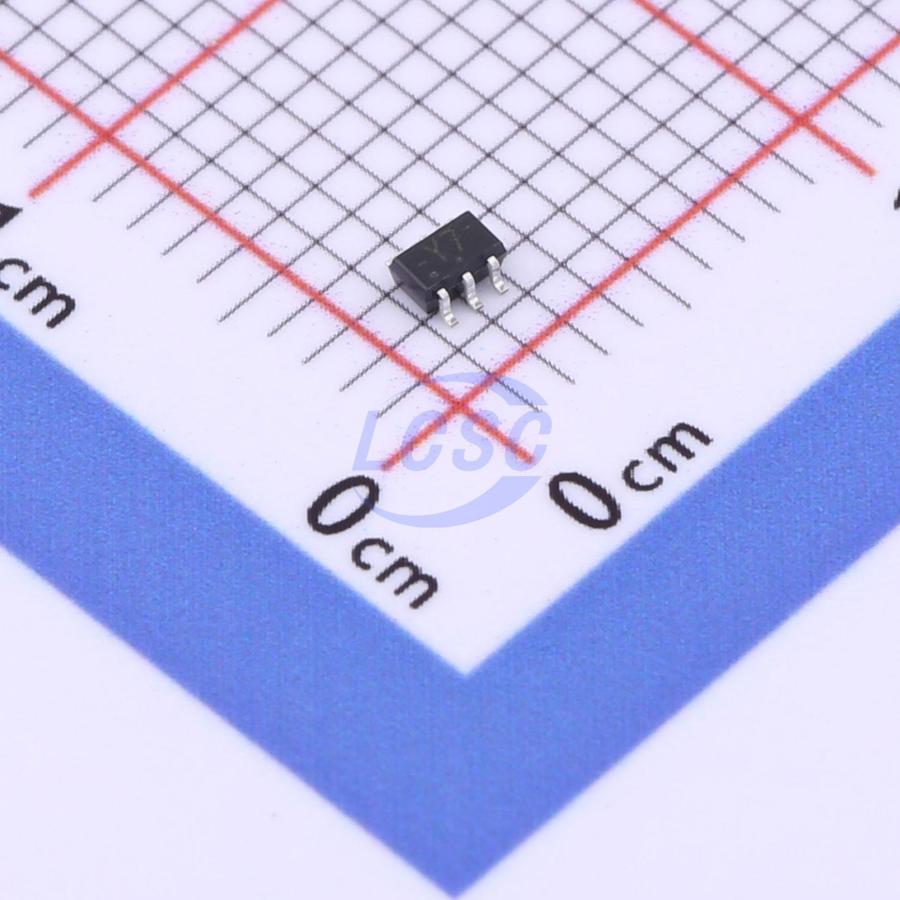

74LVC1G27GW,125
1.65V~5.5V 4.5ns@5V,50pF 4uA SC-88 Gates and Inverters RoHS
SC-88ROHS3 CompliantActive
Single 3-input NOR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC1G27GW,125
- Store part #
- C548320
- Package / case
- SC-88
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C548320
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.60 | ₹113.00 |
| 50+ | ₹17.65 | ₹882.50 |
| 150+ | ₹15.53 | ₹2,329.50 |
| 500+ | ₹12.89 | ₹6,445.00 |
| 3,000+ | ₹11.71 | ₹35,130.00 |
| 6,000+ | ₹11.01 | ₹66,060.00 |
5 × ₹22.60
₹113.00
excl. GST
₹133.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G27GW,125
₹113.00 for 5 + GST
Specifications
- Input Type
- Schmitt trigger;TTL-compatible CMOS
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 4.5ns@5V,50pF
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV~800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
The 74LVC1G27 provides one 3-input NOR function. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Applications
- Mixed 3.3V and 5V applications
Key features
- Wide supply voltage range from 1.65 V to 5.5 V
- High noise immunity
- ±24 mA output drive (VCC = 3.0 V)
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- Inputs accept voltages up to 5 V
- Complies with JEDEC standard:
- JESD8-7 (1.65 V to 1.95 V)
- JESD8-5 (2.3 V to 2.7 V)
- JESD8C (2.7 V to 3.6 V)
- JESD36 (4.5 V to 5.5 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AiP74LVC1G27GC363.TR#C52120894Wuxi I-core Elec · SOT-363 | Wuxi I-core Elec | SOT-363 | 2,780 | ₹12.49 · 2,780 in stock | View | |
 | 74LVC1G27GW-Q100H#C548321Nexperia · SC-88 | Nexperia | SC-88 | On request | ₹69.40 · 0 in stock | View |
