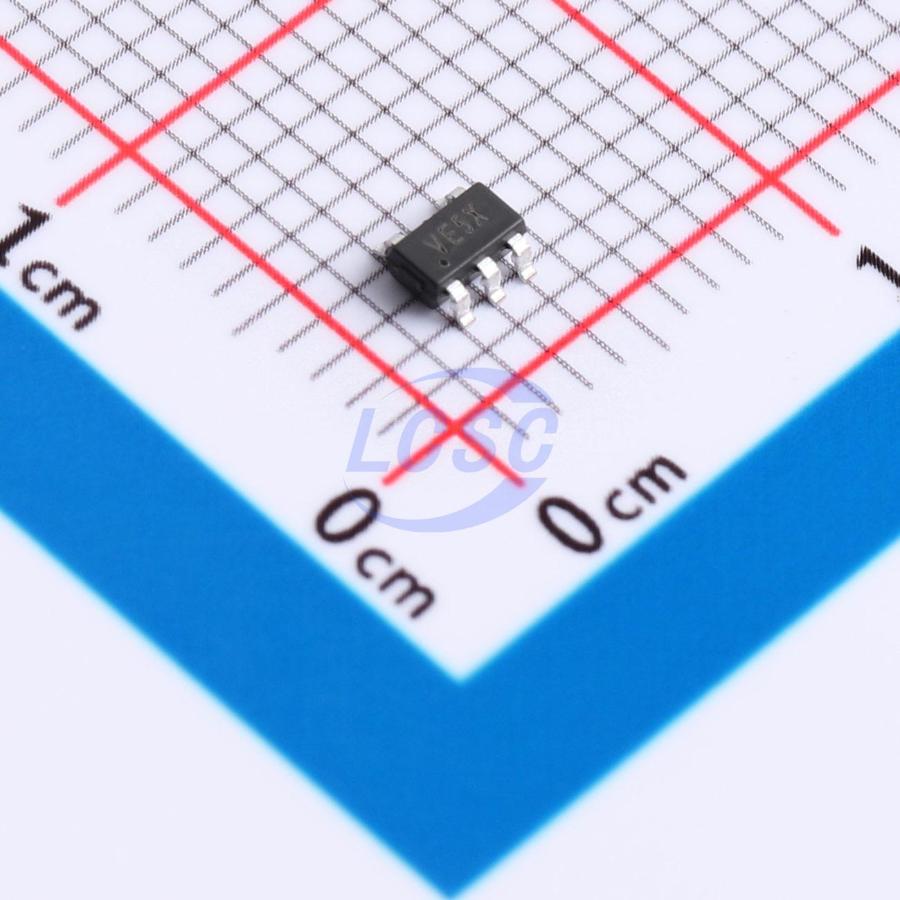

MDD(Microdiode Semiconductor)

74LVC1G32GV

Schmitt trigger 1.65V~5.5V 100nA SOT-23-5L Gates and Inverters

SOT-23-5LRoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G32GV
Store part #: C52953346
Package / case: SOT-23-5L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,170 in stock

#C52953346

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹9.50	₹95.00
100+	₹7.49	₹749.00
300+	₹6.48	₹1,944.00
3,000+	₹5.73	₹17,190.00
6,000+	₹5.12	₹30,720.00
9,000+	₹4.83	₹43,470.00

Quantity (min 10, multiples of 10)

10 × ₹9.50

₹95.00

excl. GST

₹112.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G32GV

₹95.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Features: Local shutdown mode;Overvoltage-tolerant input
Quiescent Current(Iq): 100nA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.083 g

Overview

The 74LVC1G32 is a single 2-input OR gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. All inputs feature Schmitt-trigger action, enabling the circuit to tolerate slow input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing damaging backflow current through the device when it is powered down.
