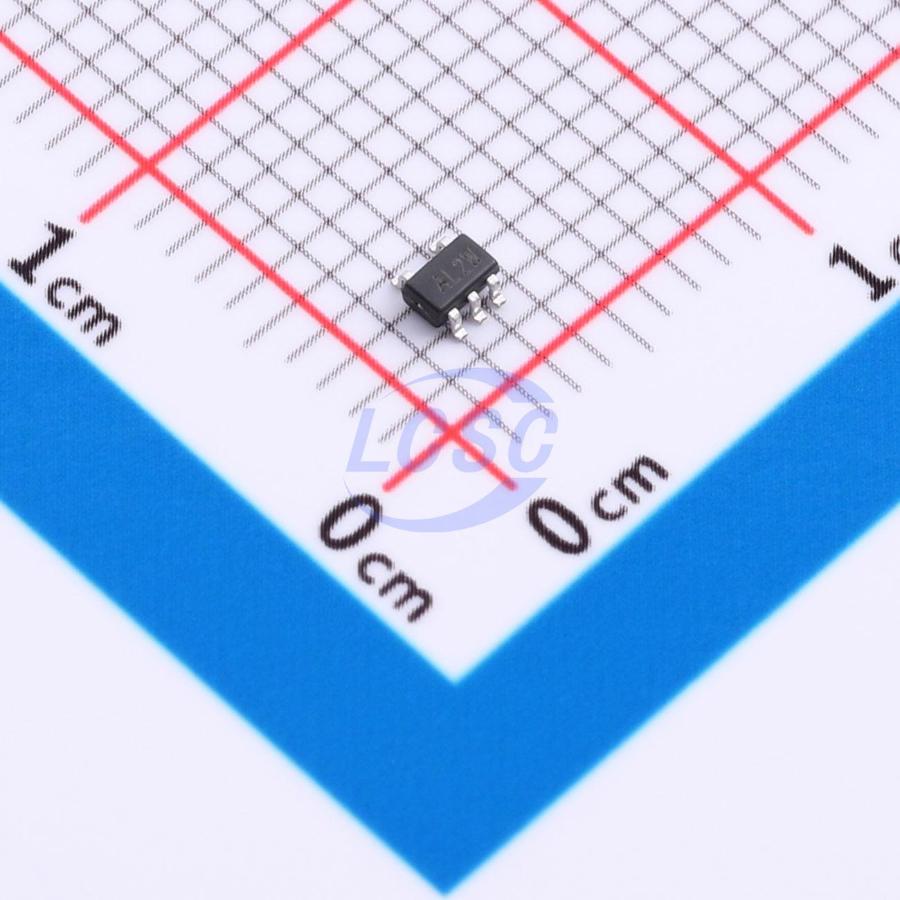

JSMSEMI

74LVC1G32GW,125-JSM

1.65V~5.5V SOT-353 Gates and Inverters RoHS

SOT-353ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74LVC1G32GW,125-JSM
Store part #: C53114314
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,550 in stock

#C53114314

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.38	₹53.80
100+	₹4.29	₹429.00
300+	₹3.74	₹1,122.00
3,000+	₹3.33	₹9,990.00
6,000+	₹3.00	₹18,000.00
9,000+	₹2.84	₹25,560.00

Quantity (min 10, multiples of 10)

10 × ₹5.38

₹53.80

excl. GST

₹63.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G32GW,125-JSM

₹53.80 for 10 + GST

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;300mV;400mV;450mV;550mV
Propagation Delay: 21ns@1.65V,30pF;15.8ns@2.3V,30pF;15ns@2.7V,50pF;14.3ns@3V,50pF;13.5ns@4.5V,50pF
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Current - Output High(IOH): 32mA
Number of Channels: 2;1
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

74LVC1G32 provides a single 2-input OR gate function. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V applications.
