MDD(Microdiode Semiconductor)

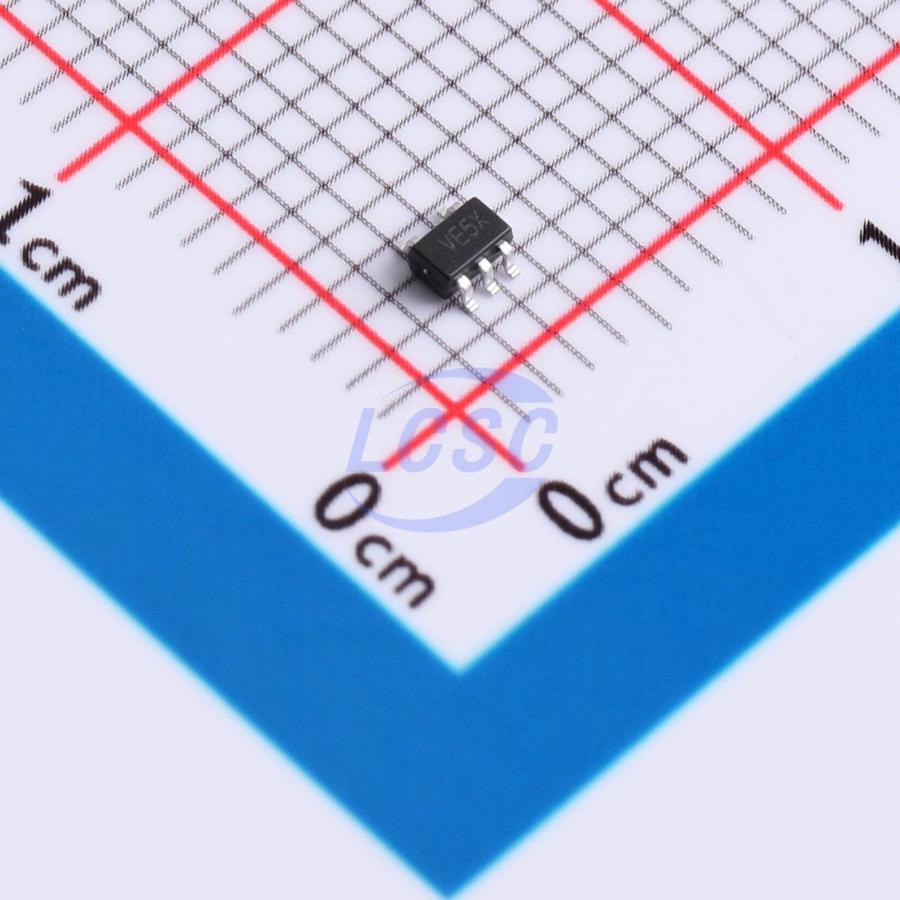

74LVC1G32GW

Schmitt trigger 1.65V~5.5V 6ns@3.3V,50pF 4uA SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G32GW
Store part #: C52953349
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,540 in stock

#C52953349

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹9.59	₹95.90
100+	₹7.55	₹755.00
300+	₹6.55	₹1,965.00
3,000+	₹5.78	₹17,340.00
6,000+	₹5.17	₹31,020.00
9,000+	₹4.87	₹43,830.00

Quantity (min 10, multiples of 10)

10 × ₹9.59

₹95.90

excl. GST

₹113.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G32GW

₹95.90 for 10 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 6ns@3.3V,50pF
Output Logic Level - Low: 100mV;300mV;400mV;450mV;550mV;800mV
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V;2V
Features: Local shutdown mode;Overvoltage-tolerant input
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 2;1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.074 g

Overview

The 74LVC1G32 is a single 2-input OR gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. All inputs feature Schmitt-trigger action, enabling the circuit to tolerate slow input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing damaging backflow current through the device when it is powered down.
