HGSEMIDatasheet (PDF)

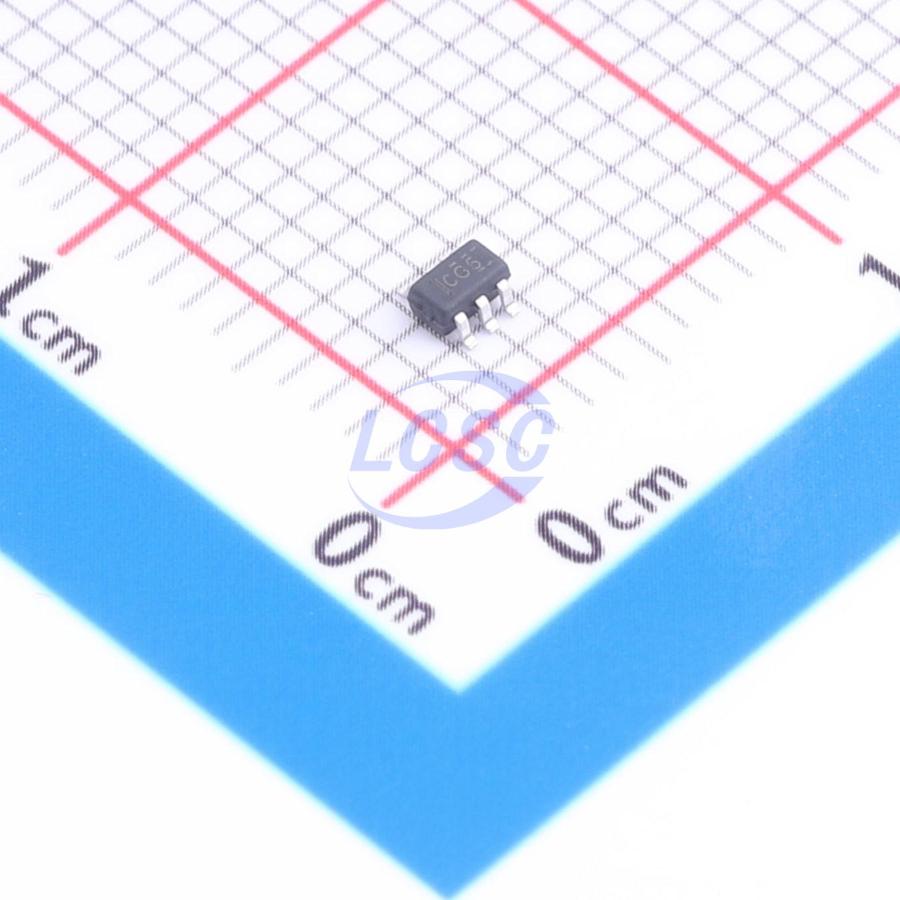

74LVC1G32M7/TR-HG
4uA 1.65V~5.5V 9ns@4.5V,50pF SC-70-5 Gates and Inverters
SC-70-5RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74LVC1G32M7/TR-HG
- Store part #
- C54348659
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C54348659
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.45 | ₹84.50 |
| 100+ | ₹6.73 | ₹673.00 |
| 300+ | ₹5.86 | ₹1,758.00 |
| 3,000+ | ₹5.21 | ₹15,630.00 |
| 6,000+ | ₹4.70 | ₹28,200.00 |
| 9,000+ | ₹4.43 | ₹39,870.00 |
10 × ₹8.45
₹84.50
excl. GST
₹99.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G32M7/TR-HG
₹84.50 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2;1
- Propagation Delay
- 9ns@4.5V,50pF
- Output Logic Level - Low
- 100mV;300mV;400mV;450mV;550mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.074 g
Overview
The 74LVC1G32 provides a single 2-input OR gate function. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V applications.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- ±24mA output drive (Vcc = 3.0V)
- CMOS low power consumption
- Inputs accept up to 5V
- Operating temperature range: -40°C to +125°C
- Package options: SOT-23-5 / SC70-5 / DFN-6
