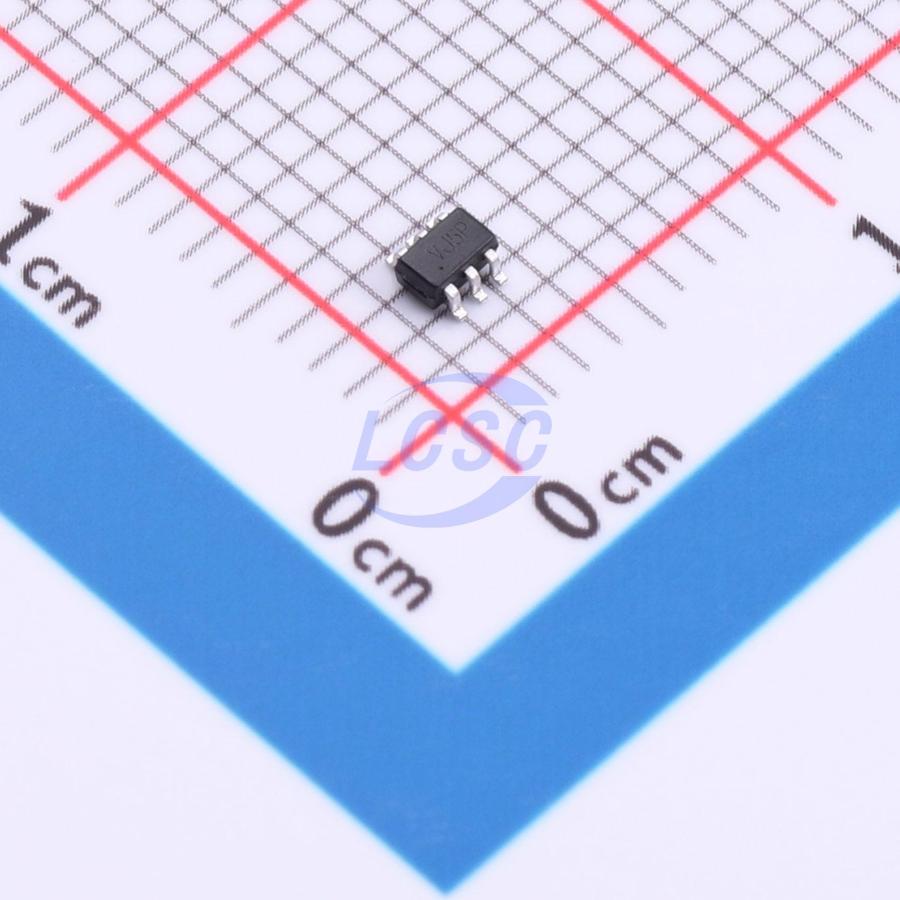

74LVC1G58GW

The 74LVC1G58 is a configurable multi-function gate with Schmitt-trigger inputs. The device can be configured via 3-bit inputs to implement any of the following logic functions: AND, OR, NAND, NOR, XOR, inverter, and buffer. All inputs can be connected directly to VCC or GND. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V environments. The device fully supports partial power-down applications using IOFF. The IOFF circuit disables the output, preventing potentially damaging backflow current when the device is powered down.

Key features

• Wide supply voltage range: 1.65 V to 5.5 V
• Input overvoltage tolerance up to 5.5 V
• High noise immunity
• Output drive capability ±24 mA (VCC = 3.0 V)
• CMOS low power consumption
• Latch-up performance exceeds 200 mA
• Direct TTL-level interface compatible
• IOFF circuit supports partial power-down mode operation
• JEDEC compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
• ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
• Multiple package options
• Low-power configurable multi-function gate
