JSMSEMIDatasheet (PDF)

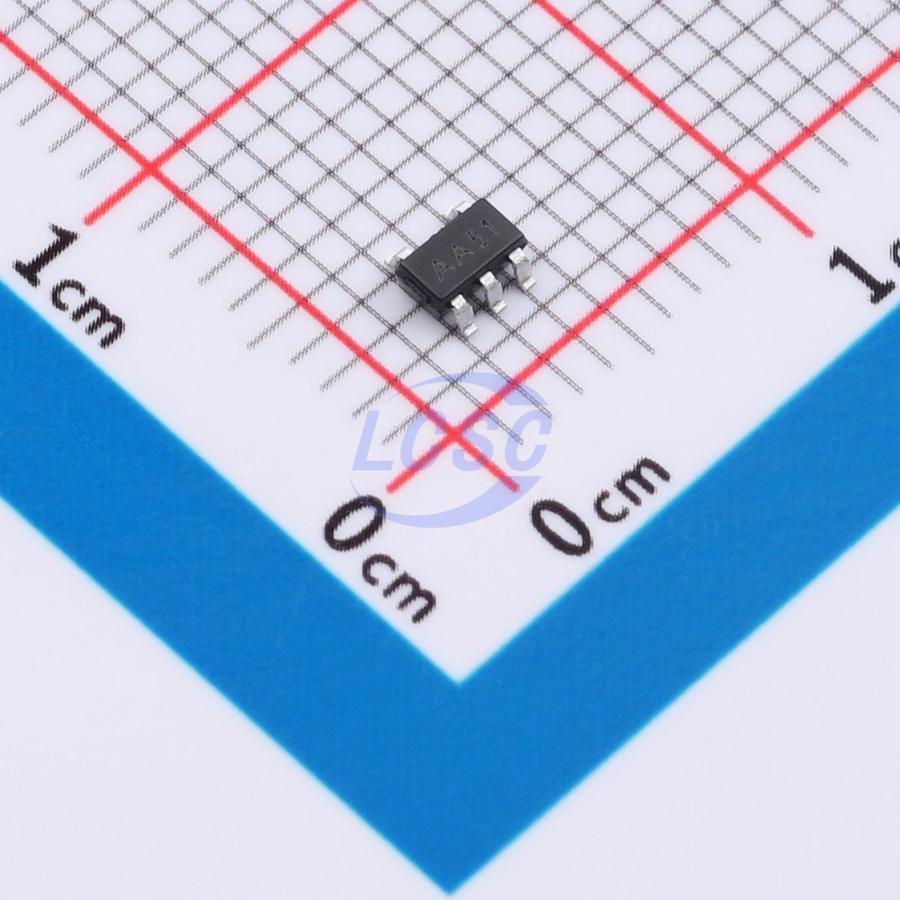

74LVC1G86GV-JSM
1.65V~5.5V 13.5ns@5.5V,50pF 4uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G86GV-JSM
- Store part #
- C53114288
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,320 in stock
#C53114288
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.38 | ₹53.80 |
| 100+ | ₹4.29 | ₹429.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 3,000+ | ₹3.33 | ₹9,990.00 |
| 6,000+ | ₹3.00 | ₹18,000.00 |
| 9,000+ | ₹2.84 | ₹25,560.00 |
10 × ₹5.38
₹53.80
excl. GST
₹63.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G86GV-JSM
₹53.80 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 13.5ns@5.5V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
This device provides a 2-input XOR function. The inputs can be driven by 3.3V or 5V devices. These features allow the device to be used in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Output drive capability ±24mA at VCC = 3.0V
- CMOS low power consumption
- Inputs accept voltages up to 5V
- Operating temperature range: -40°C to +125°C
- Package: SOT-23-5/SOT-353
