MDD(Microdiode Semiconductor)Datasheet (PDF)

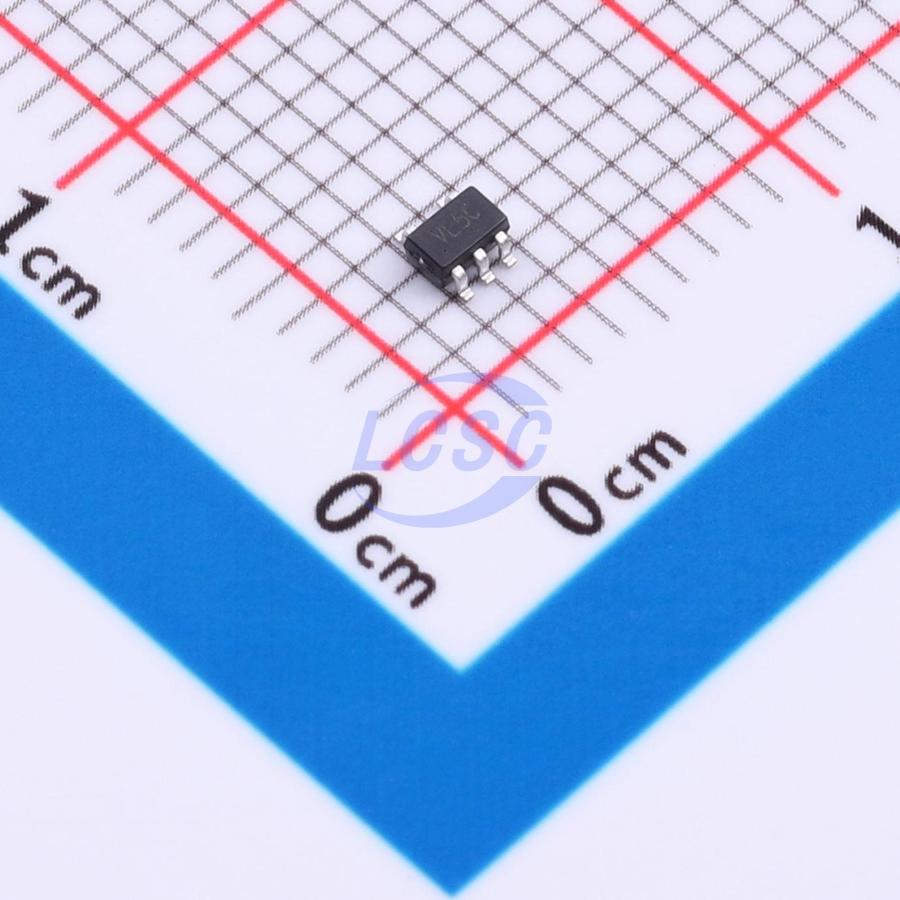

74LVC1G86GW
TTL-compatible CMOS 1.65V~5.5V 4ns@5V 4uA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC1G86GW
- Store part #
- C52140425
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,135 in stock
#C52140425
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.51 | ₹47.55 |
| 50+ | ₹7.50 | ₹375.00 |
| 150+ | ₹6.50 | ₹975.00 |
| 500+ | ₹5.74 | ₹2,870.00 |
| 3,000+ | ₹5.13 | ₹15,390.00 |
| 6,000+ | ₹4.83 | ₹28,980.00 |
5 × ₹9.51
₹47.55
excl. GST
₹56.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G86GW
₹47.55 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4ns@5V
- Output Logic Level - Low
- 700mV;450mV
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Input Logic Level - High
- 1.7V~2V
- Input Logic Level - Low
- 700mV~800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2V;3.4V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.075 g
Overview
The 74LVC1G86 provides a 2-input XOR gate function. The inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used in mixed 3.3V and 5V environments. The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuitry disables the outputs, preventing damaging backflow current when the device is powered down.
Key features
- Wide supply voltage range: 1.65 V ~ 5.5 V
- High noise immunity
- ±24 mA output drive (V_CC = 3.0 V)
- CMOS low power consumption
- Direct TTL-level interface compatible
- Overvoltage-tolerant inputs up to 5.5 V
- I_OFF circuitry supports partial power-down mode operation
- Latch-up performance exceeds 200 mA
- JEDEC standard compliant
- ESD protection
- Multiple package options
