NexperiaDatasheet (PDF)
74LVC1GU04GW,125
StandardCMOS 1.65V~5.5V 4ns@5V,50pF 4uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive

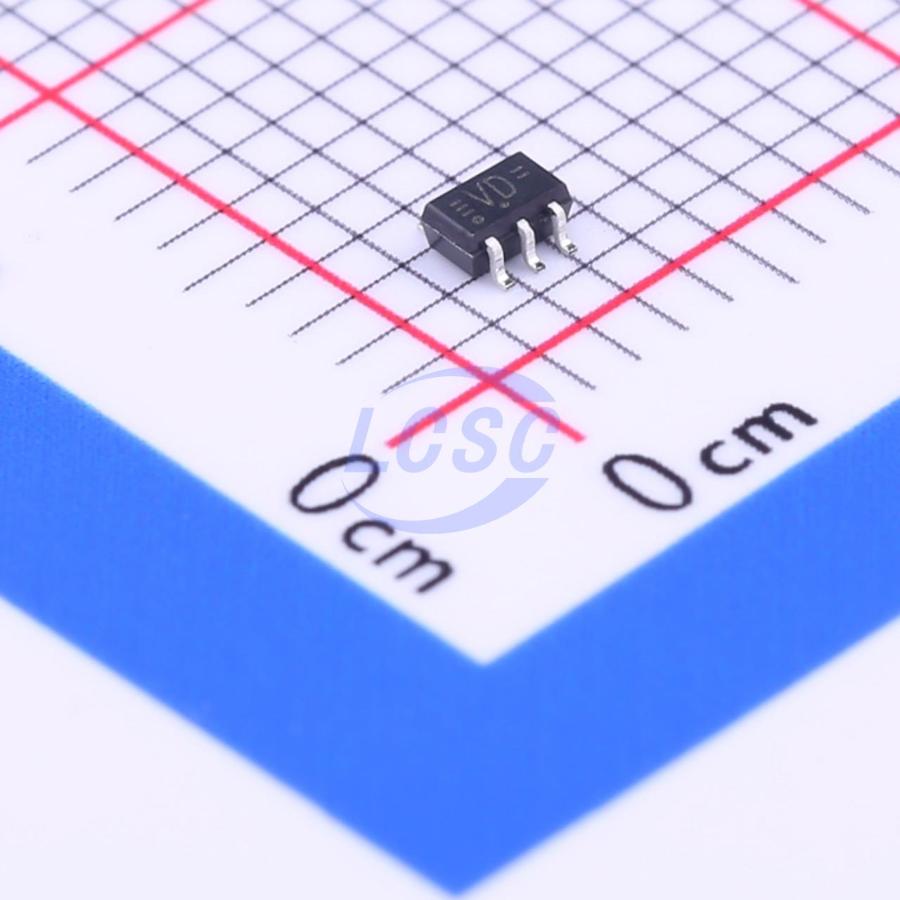

Unbuffered inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC1GU04GW,125
- Store part #
- C12515
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,625 in stock
#C12515
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.63 | ₹213.15 |
| 50+ | ₹33.88 | ₹1,694.00 |
| 150+ | ₹30.12 | ₹4,518.00 |
| 500+ | ₹25.45 | ₹12,725.00 |
| 3,000+ | ₹23.36 | ₹70,080.00 |
| 6,000+ | ₹22.12 | ₹1,32,720.00 |
5 × ₹42.63
₹213.15
excl. GST
₹251.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1GU04GW,125
₹213.15 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LVC
- Input Type
- StandardCMOS
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 4ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 330mV~1.1V
- Input Logic Level - High
- 1.32V~4.4V
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 74LVC1GU04 is a single unbuffered inverter. The input can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device in a mixed 3.3 V and 5 V environment.
Applications
- Linear amplifier
- In crystal oscillator design
Key features
- Overvoltage tolerant inputs to 5.5 V
- Wide supply voltage range from 1.65 V to 5.5 V
- High noise immunity
- ±24 mA output drive (VCC = 3.0 V)
- CMOS low power dissipation
- Latch-up performance exceeds 250 mA
- Complies with JEDEC standard no. 8-1A
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
