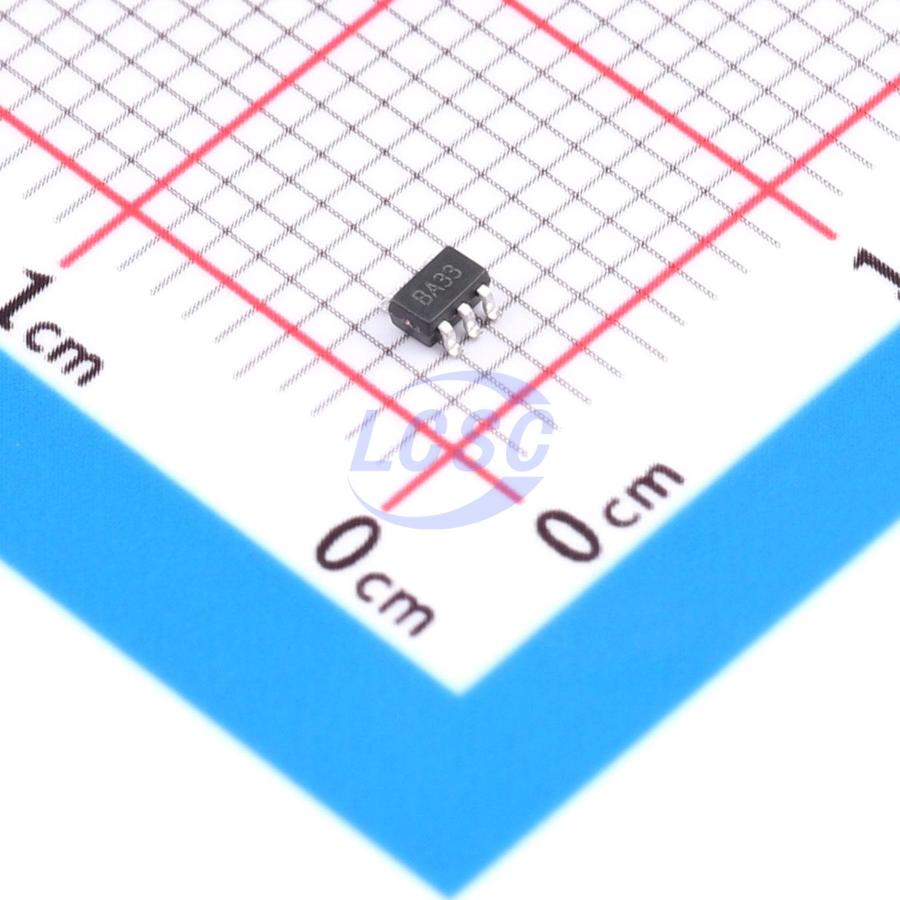

JSMSEMI

74LVC1GU04GW,125-JSM

1.65V~5.5V 2.6ns@5V,50pF 4uA 1 SOT-353 Gates and Inverters RoHS

SOT-353ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74LVC1GU04GW,125-JSM
Store part #: C53114303
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C53114303

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹17.09	₹85.45
50+	₹13.61	₹680.50
150+	₹11.88	₹1,782.00
500+	₹10.57	₹5,285.00
3,000+	₹9.54	₹28,620.00
6,000+	₹9.01	₹54,060.00

Quantity (min 5, multiples of 5)

5 × ₹17.09

₹85.45

excl. GST

₹100.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1GU04GW,125-JSM

₹85.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2.6ns@5V,50pF
Output Logic Level - Low: 100mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V;950mV;1.7V;2V;3.4V
Quiescent Current(Iq): 4uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.032 g

Overview

74LVC1GU04GW,125-JSM is a single unbuffered inverter. Its inputs are compatible with 3.3V or 5V logic levels, enabling use in mixed 3.3V/5V voltage environments. Key features include: supply voltage range of 1.65V ~ 5.5V; ±24mA output drive capability at VCC = 3.0V; CMOS low-power characteristics; 5V-tolerant inputs; operating temperature range of -40℃ ~ +125℃; SOT-353 package.
