Nexperia

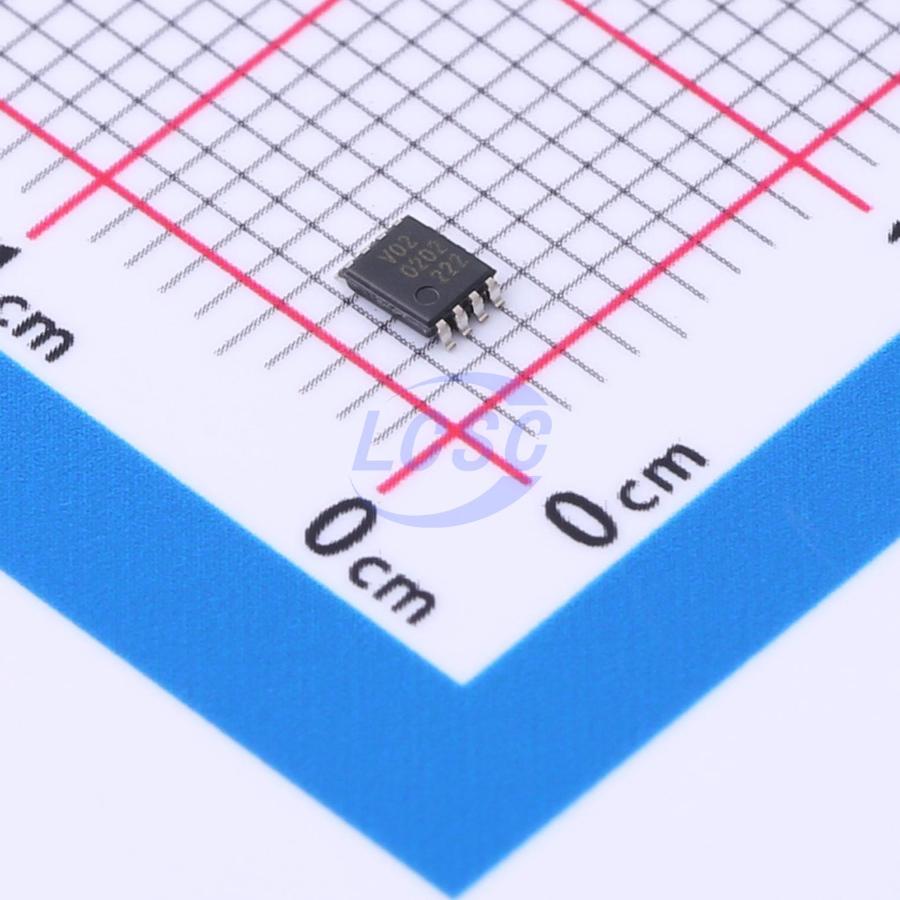

74LVC2G02DC-Q100H

Schmitt trigger 1.65V~5.5V 4.3ns@4.5V~5.5V,50pF 4uA VSSOP-8-0.5mm Gates and Inverters RoHS

VSSOP-8-0.5mmROHS3 CompliantActive

Dual 2-input NOR gate

Manufacturer: Nexperia
Manufacturer part #: 74LVC2G02DC-Q100H
Store part #: C548536
Package / case: VSSOP-8-0.5mm
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,722 in stock

#C548536

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹70.37	₹70.37
10+	₹56.92	₹569.20
30+	₹50.18	₹1,505.40
100+	₹43.66	₹4,366.00
500+	₹39.53	₹19,765.00
1,000+	₹37.59	₹37,590.00

Quantity (min 1)

1 × ₹70.37

₹70.37

excl. GST

₹83.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G02DC-Q100H

₹70.37 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4.3ns@4.5V~5.5V,50pF
Features: Local shutdown mode;Overvoltage-tolerant input
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 2;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.022 g

Overview

The 74LVC2G02-Q100 is a dual 2-input NOR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Applications

Automotive applications

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1) Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Wide supply voltage range from 1.65 V to 5.5 V
5 V tolerant outputs for interfacing with 5 V logic
Overvoltage tolerant inputs to 5.5 V
High noise immunity
±24 mA output drive (VCC = 3.0 V)
CMOS low power consumption
IOFF circuitry provides partial Power-down mode operation
Latch-up performance exceeds 250 mA
Direct interface with TTL levels
Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V) JESD8-5 (2.3 V to 2.7 V) JESD8-B/JESD36 (2.7 V to 3.6 V)
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NL27WZ02USG#C893442onsemi · US-8	onsemi	US-8	5	₹21.00 · 5 in stock	View
AiP74LVC2G02YA8.TR#C52121057Wuxi I-core Elec · VSSOP-8	Wuxi I-core Elec	VSSOP-8	295	₹33.09 · 295 in stock	View
74LVC2G02DC,125#C489242Nexperia · VSSOP-8	Nexperia	VSSOP-8	56	₹45.86 · 56 in stock	View
SN74LVC2G02MDCUREP#C2859978TI · VSSOP-8	TI	VSSOP-8	10	₹449.38 · 10 in stock	View
TC7WZ02FK,LJ(CT#C5331574TOSHIBA · SOT-765	TOSHIBA	SOT-765	200	₹68.74 · 200 in stock	View
