TDSEMICDatasheet (PDF)

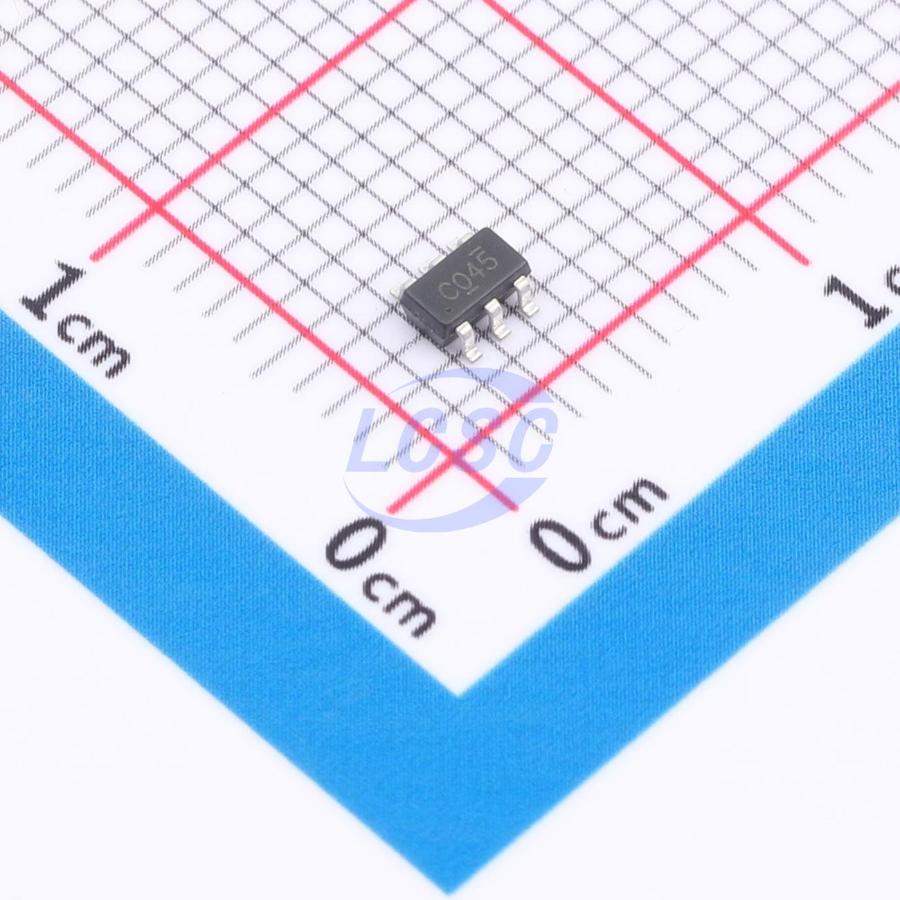

74LVC2G04DBVR-TD
1.65V~5.5V 10uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 74LVC2G04DBVR-TD
- Store part #
- C53514493
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C53514493
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.17 | ₹61.70 |
| 100+ | ₹4.88 | ₹488.00 |
| 300+ | ₹4.25 | ₹1,275.00 |
| 3,000+ | ₹3.77 | ₹11,310.00 |
| 6,000+ | ₹3.39 | ₹20,340.00 |
| 9,000+ | ₹3.19 | ₹28,710.00 |
10 × ₹6.17
₹61.70
excl. GST
₹72.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G04DBVR-TD
₹61.70 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;90mV;150mV;250mV
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.47V;2.15V;2.8V;2.7V;4.2V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.12 g
Overview
This dual inverter is designed for VCC supply voltages from 1.65V to 5.5V. The 74LVC2G04 device performs the Boolean function Y = Π A (overbar). This device is fully specified for partial-powerdown applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow when the device is powered down.
Key features
- VCC supply voltage: 5V
- Input voltage tolerance up to 5.5V
- Low power consumption, maximum ICC current 10μA
- Output drive current ±24mA at 3.3V
- Ioff supports partial power-down mode operation
