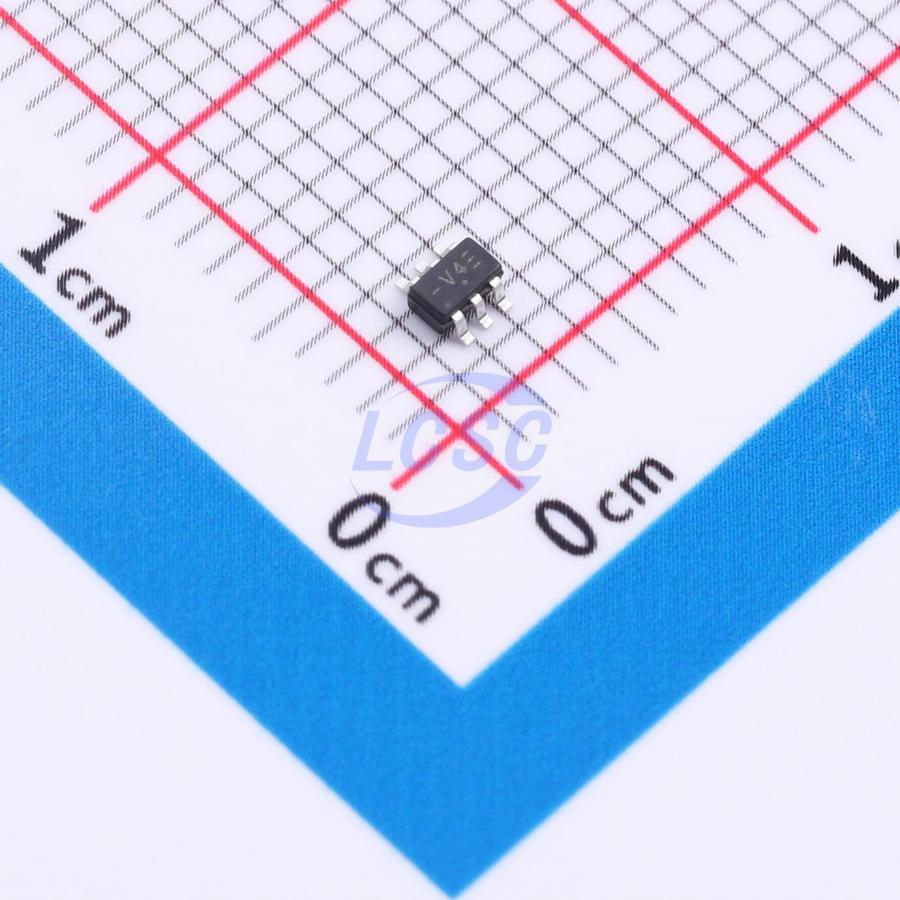

74LVC2G04DW-TP
1.65V~5.5V 1.9ns@5V,50pF 10uA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G04DW-TP
- Store part #
- C52145916
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,340 in stock
#C52145916
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.57 | ₹35.70 |
| 100+ | ₹3.12 | ₹312.00 |
| 300+ | ₹2.91 | ₹873.00 |
| 3,000+ | ₹2.74 | ₹8,220.00 |
| 6,000+ | ₹2.61 | ₹15,660.00 |
| 9,000+ | ₹2.54 | ₹22,860.00 |
10 × ₹3.57
₹35.70
excl. GST
₹42.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G04DW-TP
₹35.70 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 1.9ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
74LVC2G04 is a dual inverter gate that provides the Boolean function Y = Ā in positive logic. The device features a power-off protection circuit to prevent damage when power is removed.
Key features
- Operating voltage range: 1.65~5.5V
- Inputs tolerant up to 5.5V
- High noise immunity
- Low power consumption
- Maximum propagation delay of 3.2 ns at 5V
- ESD protection exceeds JESD 22 standard
- 2000-V Human Body Model (A114-A)
- 1000-V Charged Device Model (C101)
- Available in SOT23-6 package
- Available in SOT363 package
