DIODES

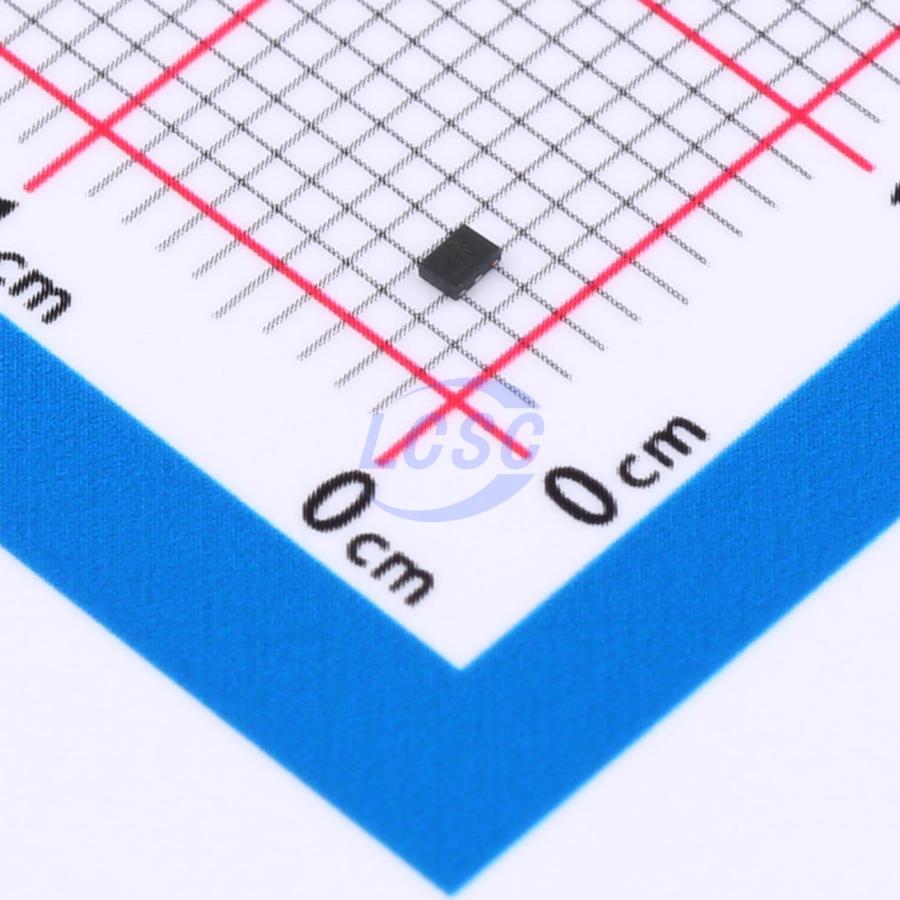

74LVC2G06FZ4-7

StandardCMOS 1.65V~5.5V 2.9ns@5V,50pF 40uA 2 X2-DFN1409-6 Gates and Inverters RoHS

X2-DFN1409-6ROHS3 CompliantActive

DUAL INVERTERS with OPEN DRAIN OUTPUTS

Manufacturer: DIODES
Manufacturer part #: 74LVC2G06FZ4-7
Store part #: C842625
Package / case: X2-DFN1409-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,895 in stock

#C842625

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹25.02	₹125.10
50+	₹22.04	₹1,102.00
150+	₹20.77	₹3,115.50
500+	₹19.18	₹9,590.00
2,500+	₹18.47	₹46,175.00
5,000+	₹18.05	₹90,250.00

Quantity (min 5, multiples of 5)

5 × ₹25.02

₹125.10

excl. GST

₹147.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74LVC2G06FZ4-7

₹125.10 for 5 + GST

Specifications

output type: Open-drain
Input Type: StandardCMOS
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 800mV
Propagation Delay: 2.9ns@5V,50pF
Features: Power shutdown protection
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V~2V
Quiescent Current(Iq): 40uA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.03 g

Overview

The 74LVC2G06 is a dual inverter gate with open drain outputs. The device is designed for operation with a power supply range of 1.65V to 5.5V. The input is tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The circuitry disables the output preventing damaging current backflow when the device is powered down. The open-drain output can be connected to other open drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32mA.

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
PCs, Networking, Notebooks, Netbooks, Tablets
Computer Peripherals, Hard Drives, SSD, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation / GPS MP3 Players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65V to 5.5V
-24mA Output Drive at 3.0V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Tested per JESD 22 Exceeds 200-V Machine Model (A115) Exceeds 2000-V Human Body Model (A114) Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I DFN1409 package designed as a direct replacement for chip scale packaging
Range of Package Options SOT26, SOT363, X1-DFN1010-6, X2-DFN1010-6, X2-DFN1409-6, and X2-DFN1410-6
Leadless Packages Named per JESD30E
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
