TECH PUBLICDatasheet (PDF)

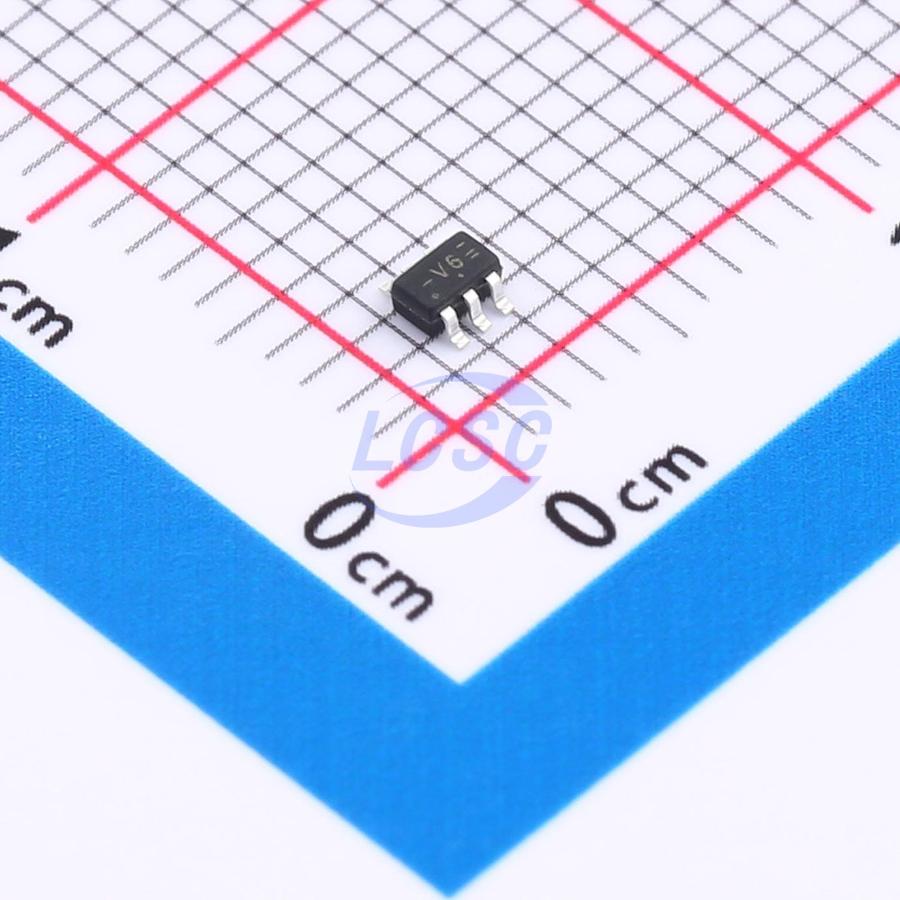

74LVC2G06GW-TP
1.65V~5.5V 7ns@3.3V,50pF 10uA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
INVERTERS WITH OPEN-DRAIN OUTPUTS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G06GW-TP
- Store part #
- C42460211
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C42460211
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.65 | ₹53.25 |
| 50+ | ₹8.41 | ₹420.50 |
| 150+ | ₹7.30 | ₹1,095.00 |
| 500+ | ₹6.47 | ₹3,235.00 |
| 3,000+ | ₹5.79 | ₹17,370.00 |
| 6,000+ | ₹5.46 | ₹32,760.00 |
5 × ₹10.65
₹53.25
excl. GST
₹62.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G06GW-TP
₹53.25 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 800mV
- Propagation Delay
- 7ns@3.3V,50pF
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The 74LVC2G06GW-TP is a dual inverting gate CMOS with open drain output and provides the Boolean function Y = A（overline） in positive logic device. This device has a power-down protective circuit to prevent the device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- Input and Open-Drain Output
- Accept Voltages to 5.5V
- High Noise Immunity
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
