Nexperia

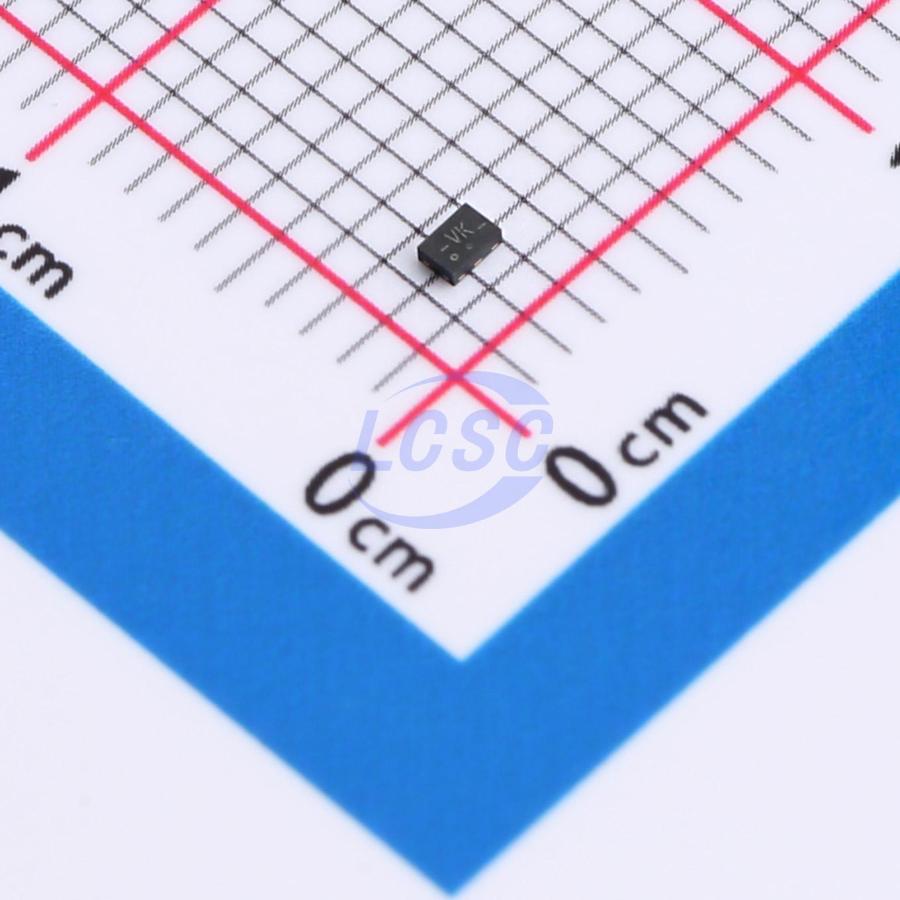

74LVC2G14GM,115

Schmitt trigger 1.65V~5.5V 4.3ns@5.5V,50pF 4uA 2 XSON-6(1x1.5) Gates and Inverters RoHS

XSON-6(1x1.5)ROHS3 CompliantActive

Dual inverting Schmitt trigger with 5 V tolerant input

Manufacturer: Nexperia
Manufacturer part #: 74LVC2G14GM,115
Store part #: C548598
Package / case: XSON-6(1x1.5)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,210 in stock

#C548598

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹24.57	₹122.85
50+	₹19.02	₹951.00
150+	₹16.64	₹2,496.00
500+	₹13.68	₹6,840.00
2,500+	₹12.36	₹30,900.00
5,000+	₹11.56	₹57,800.00

Quantity (min 5, multiples of 5)

5 × ₹24.57

₹122.85

excl. GST

₹144.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74LVC2G14GM,115

₹122.85 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;700mV;450mV;600mV;800mV
Propagation Delay: 4.3ns@5.5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 950mV;1.7V;1.9V;2V;3.4V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.016 g

Overview

The 74LVC2G14 is a dual inverter with Schmitt-trigger inputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.

Applications

Wave and pulse shaper
Astable multivibrator
Monostable multivibrator

Key features

Wide supply voltage range from 1.65 V to 5.5 V
High noise immunity
±24 mA output drive (VCC = 3.0 V)
CMOS low power dissipation
Direct interface with TTL levels
Unlimited rise and fall times
Overvoltage tolerant inputs to 5.5 V
IOFF circuitry provides partial Power-down mode operation
Latch-up performance exceeds 250 mA
Complies with JEDEC standard:
JESD8-7 (1.65 V to 1.95 V)
JESD8-5 (2.3 V to 2.7 V)
JESD8C (2.7 V to 3.6 V)
JESD36 (4.5 V to 5.5 V)
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
