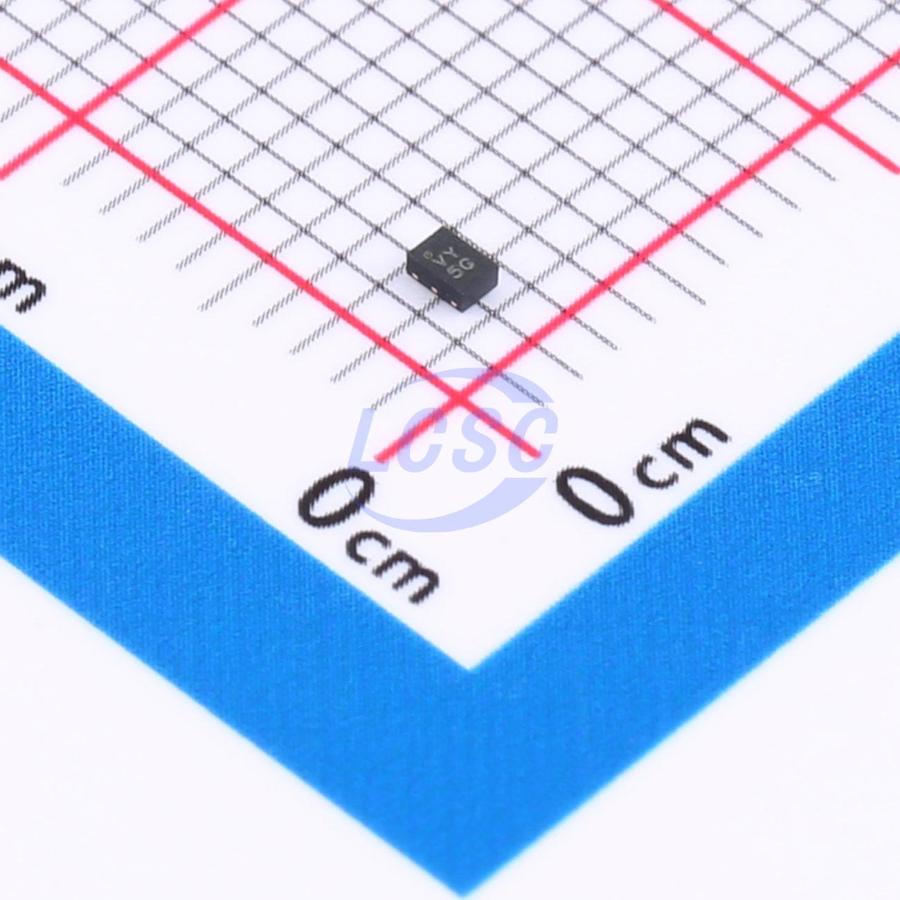

EM74LVC2G04GM

Schmitt trigger 1.65V~5.5V 2ns@5V,50pF 4uA 2 DFN-6(1x1.5) Gates and Inverters

DFN-6(1x1.5)RoHSActive

Dual inverter

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC2G04GM
Store part #: C49188107
Package / case: DFN-6(1x1.5)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,540 in stock

#C49188107

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.32	₹76.60
50+	₹12.12	₹606.00
150+	₹10.52	₹1,578.00
500+	₹9.31	₹4,655.00
3,000+	₹8.35	₹25,050.00
6,000+	₹7.86	₹47,160.00

Quantity (min 5, multiples of 5)

5 × ₹15.32

₹76.60

excl. GST

₹90.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC2G04GM

₹76.60 for 5 + GST

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2ns@5V,50pF
Output Logic Level - Low: 800mV
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 1.7V;2V
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.03 g

Overview

The EM74LVC2G04 is a dual inverter. Its inputs can be driven by 3.3 V or 5 V devices. This feature allows the device to be used as a level translator in mixed 3.3 V and 5 V environments. All inputs feature Schmitt-trigger action, enabling the circuit to tolerate slow input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs when the device is powered down, preventing harmful backflow current from flowing through the device.

Key features

Wide supply voltage range: 1.65 V to 5.5 V
Overvoltage-tolerant inputs up to 5.5 V
High noise immunity
±24 mA output drive capability (VCC = 3.0 V)
CMOS low power consumption
Direct TTL-level interface
IOFF circuit for partial power-down mode operation
Latch-up performance exceeds 100 mA
Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.6 V to 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
Dual inverter
