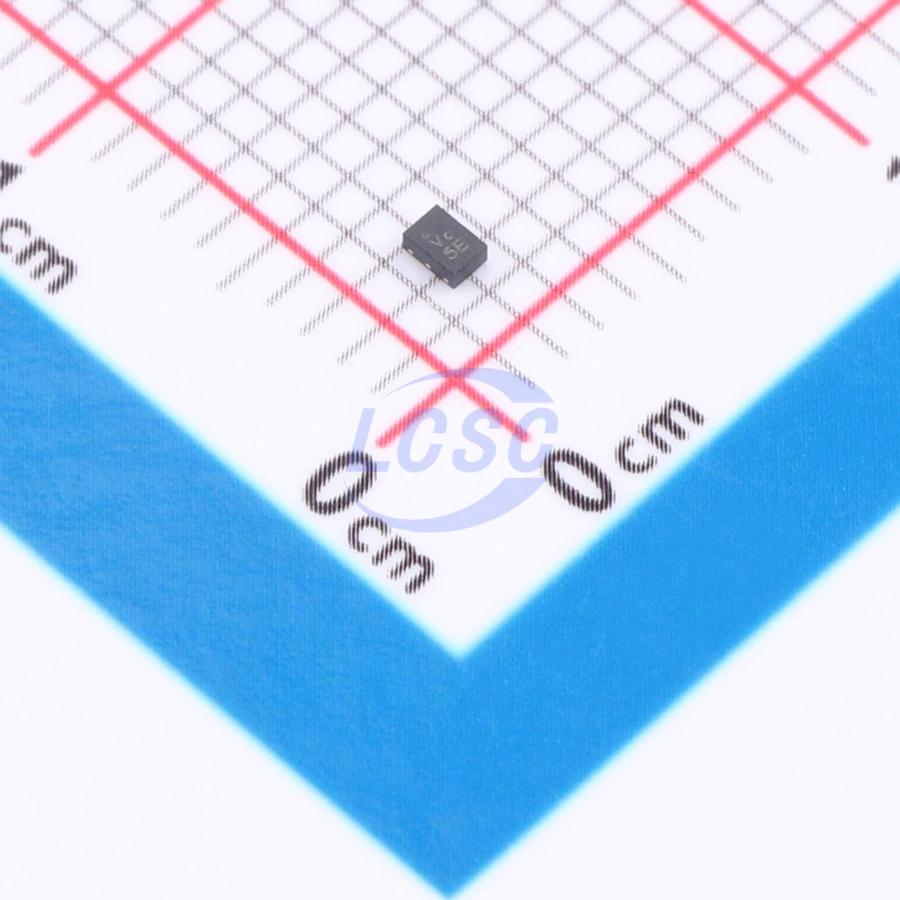

74LVC2G14GM
Schmitt trigger 1.65V~5.5V 2.9ns@5V,50pF 4uA 2 DFN-6L(1x1.5) Gates and Inverters
DFN-6L(1x1.5)RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC2G14GM
- Store part #
- C53552930
- Package / case
- DFN-6L(1x1.5)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,285 in stock
#C53552930
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.58 | ₹77.90 |
| 50+ | ₹12.28 | ₹614.00 |
| 150+ | ₹10.64 | ₹1,596.00 |
| 500+ | ₹9.39 | ₹4,695.00 |
| 3,000+ | ₹8.40 | ₹25,200.00 |
| 6,000+ | ₹7.91 | ₹47,460.00 |
5 × ₹15.58
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G14GM
₹77.90 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 2.9ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
The 74LVC2G14 is a dual inverter with Schmitt-trigger inputs. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V/5V environments. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 100mA
- Direct TTL-level interface compatible
- IOFF circuit for partial power-down mode operation
- Unrestricted rise and fall times
- JEDEC compliant:
- JESD8-7 (1.65V to 1.95V)
- JESD8-5 (2.3V to 2.7V)
- JESD8C (2.7V to 3.6V)
- JESD36 (4.5V to 5.5V)
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V
- MM JESD22-A115C Class C exceeds 550V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
