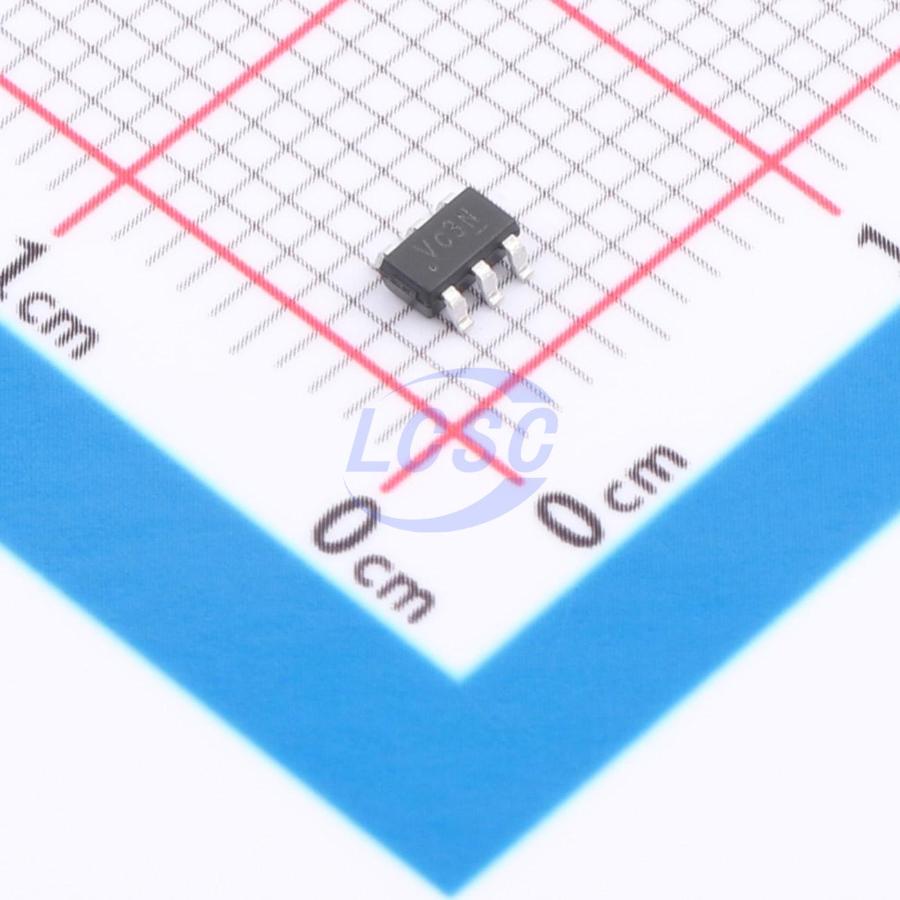

74LVC2G14GV
Schmitt trigger 100nA 1.65V~5.5V 2 2.9ns@4.5V~5.5V,50pF SOT-23-6L Gates and Inverters
SOT-23-6LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC2G14GV
- Store part #
- C53954311
- Package / case
- SOT-23-6L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,400 in stock
#C53954311
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.85 | ₹88.50 |
| 100+ | ₹6.97 | ₹697.00 |
| 300+ | ₹6.05 | ₹1,815.00 |
| 3,000+ | ₹5.33 | ₹15,990.00 |
| 6,000+ | ₹4.78 | ₹28,680.00 |
| 9,000+ | ₹4.50 | ₹40,500.00 |
10 × ₹8.85
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G14GV
₹88.50 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 100nA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2
- Propagation Delay
- 2.9ns@4.5V~5.5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.083 g
Overview
The 74LVC2G14 is a dual inverter with Schmitt-trigger inputs. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V/5V environments. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 100mA
- Direct TTL-level interface compatible
- IOFF circuit for partial power-down mode operation
- Unrestricted rise and fall times
- JEDEC compliant:
- JESD8-7 (1.65V to 1.95V)
- JESD8-5 (2.3V to 2.7V)
- JESD8C (2.7V to 3.6V)
- JESD36 (4.5V to 5.5V)
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V
- MM JESD22-A115C Class C exceeds 550V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
