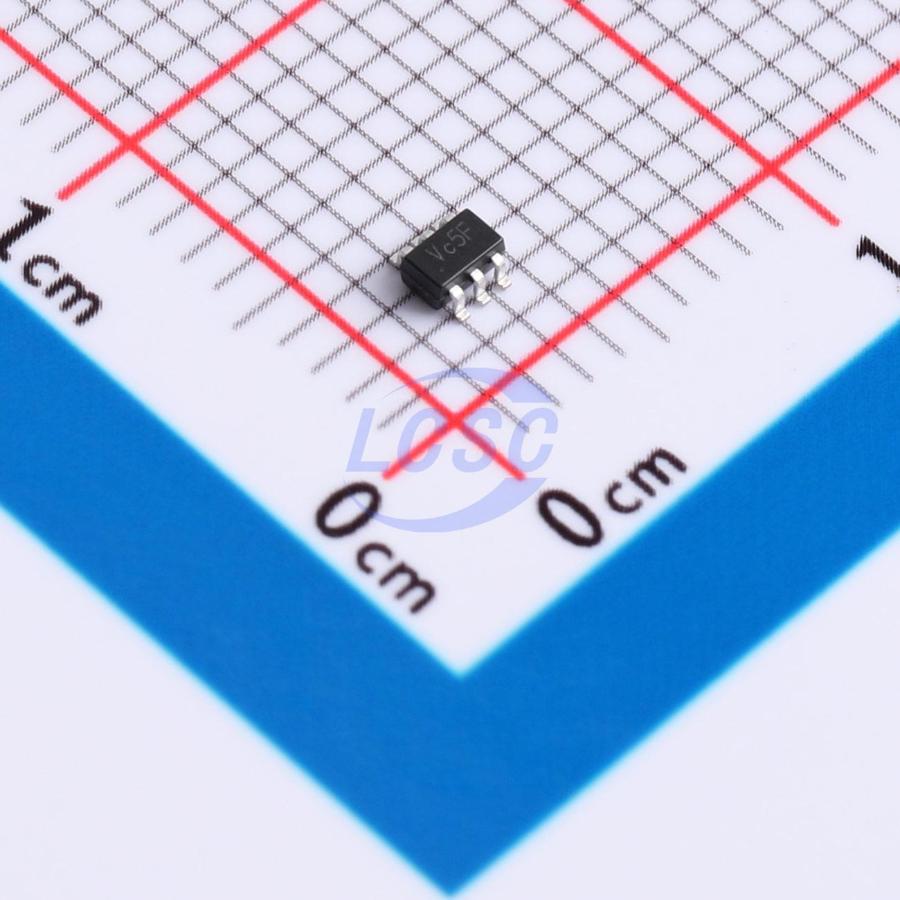

74LVC2G14GW
Schmitt trigger 1.65V~5.5V 2.9ns@5V,50pF 4uA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC2G14GW
- Store part #
- C52953354
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C52953354
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.50 | ₹95.00 |
| 100+ | ₹7.49 | ₹749.00 |
| 300+ | ₹6.48 | ₹1,944.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.83 | ₹43,470.00 |
10 × ₹9.50
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G14GW
₹95.00 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 2.9ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.074 g
Overview
74LVC2G14 is a dual inverter with Schmitt-trigger inputs. The inputs can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as level translators in mixed 3.3 V and 5 V environments. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially damaging backflow current when the device is powered down.
Key features
- Wide supply voltage range: 1.65 V to 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- ±24 mA output drive capability (VCC = 3.0 V)
- CMOS low power consumption
- Latch-up performance exceeds 100 mA
- Direct TTL-level interface compatible
- IOFF circuit enables partial power-down mode operation
- Unlimited rise and fall times
- Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- ESD protection: Human Body Model ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; Machine Model JESD22-A115C Class C exceeds 550 V; Charged Device Model ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
