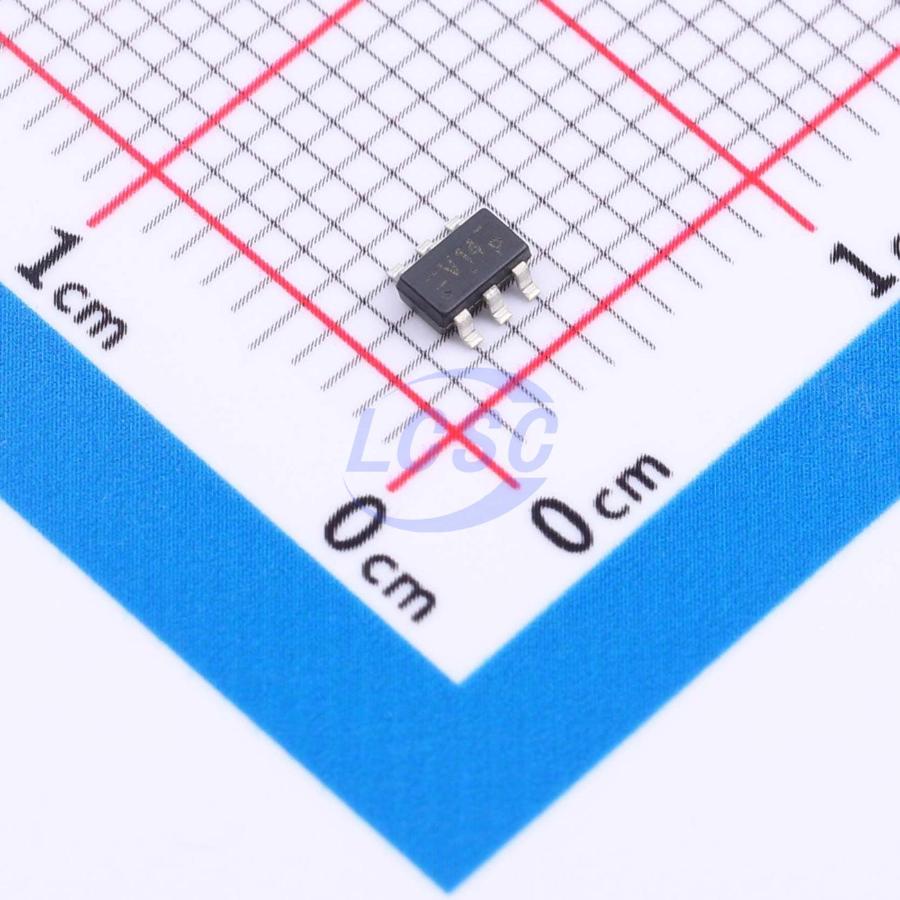

74LVC2G14W6-TP
1.65V~5.5V 1.5ns@5V,50pF 10uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G14W6-TP
- Store part #
- C52145922
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,810 in stock
#C52145922
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.43 | ₹64.30 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 3,000+ | ₹3.86 | ₹11,580.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.43
₹64.30
excl. GST
₹75.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G14W6-TP
₹64.30 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 1.5ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Noise suppression function;Power-off protection function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
74LVC2G14 is a dual inverter gate that implements the Boolean function Y = Ā in positive logic. The device features a built-in power-off protection circuit to prevent damage during power-down conditions.
Applications
- Voltage level translation
- General logic
- Power-down signal isolation
- PCs, network equipment, laptops, netbooks, PDAs
- Tablets, e-readers
Key features
- Operating voltage range: 1.65~5.5V
- 5V-tolerant inputs/outputs compatible with 5V logic
- ±24mA output drive capability (VCC = 3.3V)
- CMOS low power consumption with high noise immunity
- ESD protection exceeds JESD 22 standard
- 2000-V Human Body Model (A114-A)
- 1000-V Charged Device Model (C101)
- Available in SOT23-6 package
- Available in SOT363 package
