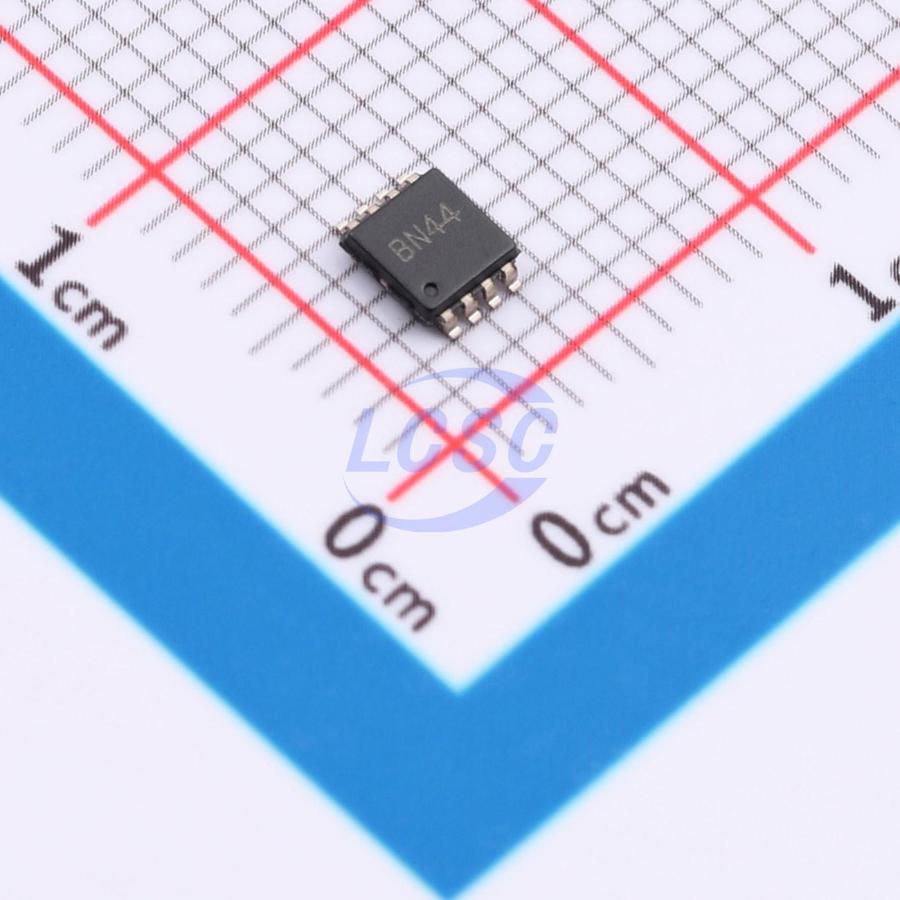

74LVC2G32DP,125-JSM
TTL-compatible CMOS 1.65V~5.5V 3.2ns@4.5V,50pF 4uA TSSOP-8 Gates and Inverters RoHS
TSSOP-8ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC2G32DP,125-JSM
- Store part #
- C53114309
- Package / case
- TSSOP-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,905 in stock
#C53114309
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.11 | ₹150.55 |
| 50+ | ₹23.81 | ₹1,190.50 |
| 150+ | ₹21.13 | ₹3,169.50 |
| 500+ | ₹17.75 | ₹8,875.00 |
| 3,000+ | ₹16.26 | ₹48,780.00 |
| 6,000+ | ₹15.36 | ₹92,160.00 |
5 × ₹30.11
₹150.55
excl. GST
₹177.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G32DP,125-JSM
₹150.55 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.2ns@4.5V,50pF
- Operating Temperature
- -40℃~+125℃
- Features
- Local shutdown mode;Rear drive protection
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.143 g
Overview
The 74LVC2G32 provides a 2-input OR gate function. The inputs can be driven by 3.3V or 5V devices, allowing these devices to be used as level translators in mixed 3.3V and 5V environments. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing damaging backflow current when the device is powered down.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V-tolerant outputs in power-off mode
- ±24mA output drive capability (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct TTL-level interface
- Inputs accept voltages up to 5V
- Operating temperature range: -40°C to +125°C
- Package options: TSSOP8/VSSOP8/XSON8
