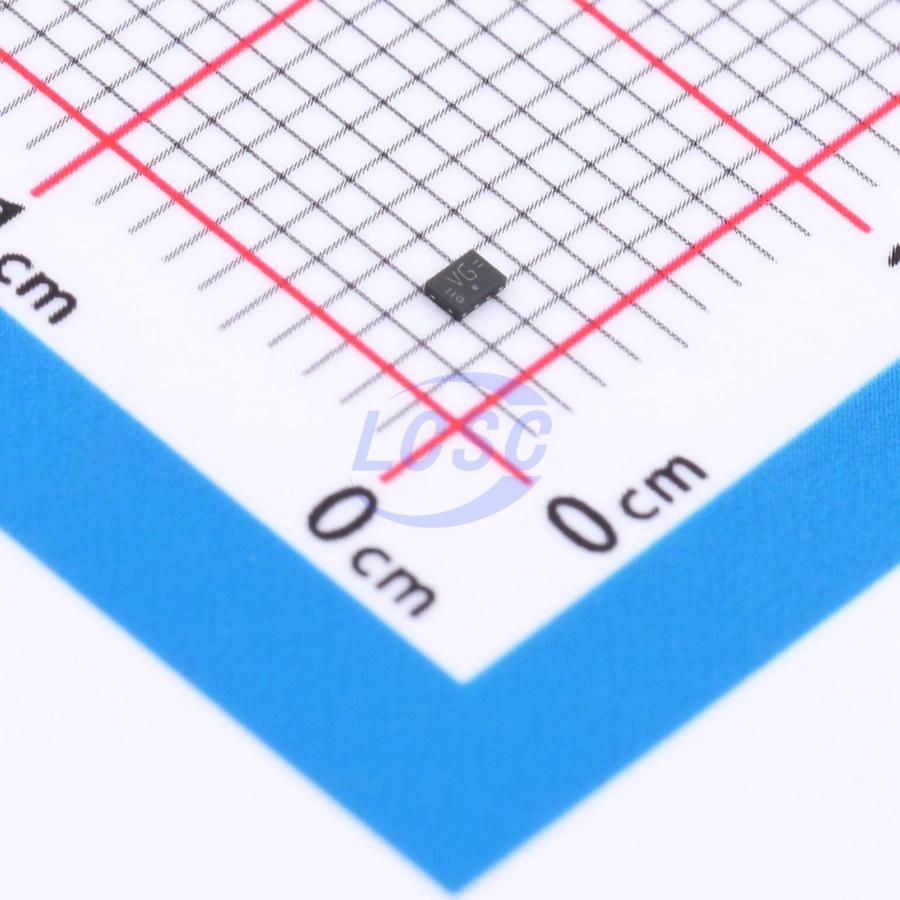

74LVC2G32GS,115

Schmitt trigger 1.65V~5.5V 4.2ns@3V,50pF 4uA XSON-8(1x1.4) Gates and Inverters RoHS

XSON-8(1x1.4)ROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: 74LVC2G32GS,115
Store part #: C548640
Package / case: XSON-8(1x1.4)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,840 in stock

#C548640

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
5+	₹17.19	₹85.95
50+	₹14.86	₹743.00
150+	₹13.87	₹2,080.50
500+	₹12.62	₹6,310.00
2,500+	₹12.07	₹30,175.00
5,000+	₹11.74	₹58,700.00

Quantity (min 5, multiples of 5)

5 × ₹17.19

₹85.95

excl. GST

₹101.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74LVC2G32GS,115

₹85.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4.2ns@3V,50pF
Output Logic Level - Low: 550mV;800mV
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 2.3V;3.8V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 2;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

The 74LVC2G32 is a dual 2-input OR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.

Key features

Wide supply voltage range from 1.65 V to 5.5 V
Overvoltage tolerant inputs to 5.5 V
High noise immunity
CMOS low power dissipation
5 V tolerant outputs in the Power-down mode
±24 mA output drive (VCC = 3.0 V)
Latch-up performance exceeds 250 mA
Direct interface with TTL levels
IOFF circuitry provides partial Power-down mode operation
Complies with JEDEC standard: JESD8 - 7 (1.65 V to 1.95 V) JESD8 - 5 (2.3 V to 2.7 V) JESD8C (2.7 V to 3.6 V) JESD36 (4.5 V to 5.5 V)
ESD protection:
HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
