JSMSEMIDatasheet (PDF)

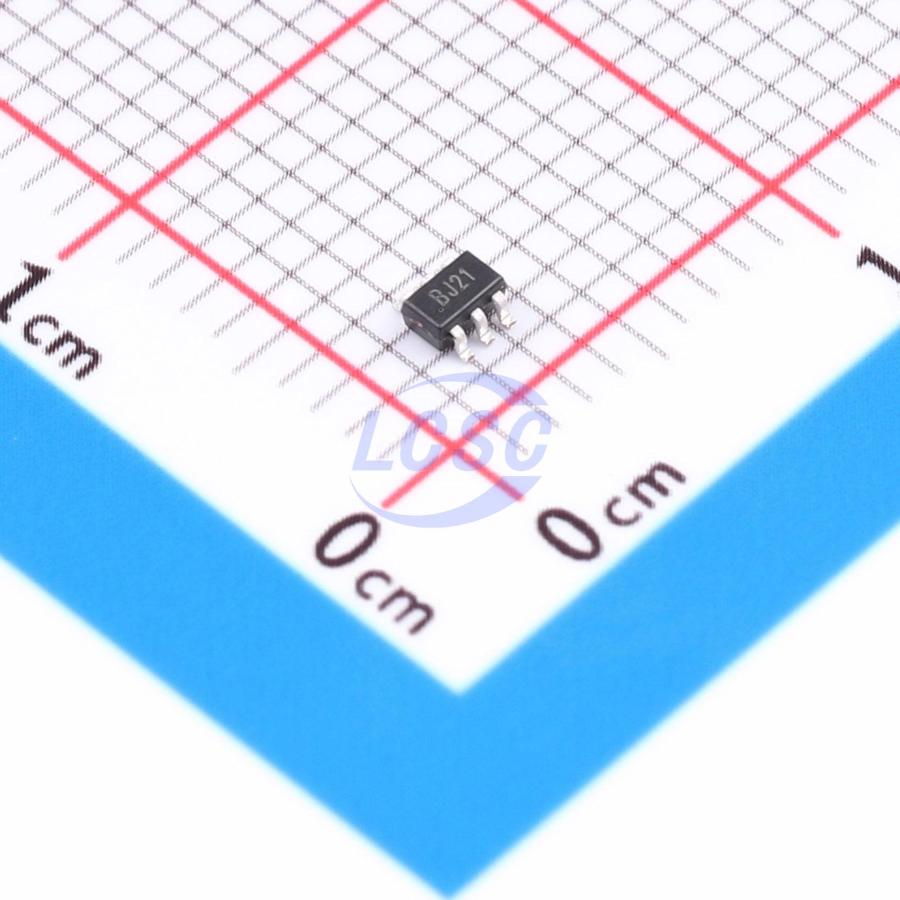

74LVC2GU04GW,125-JSM
1.65V~5.5V 8.4ns@3.3V,50pF 4uA 2 SOT-363 Gates and Inverters RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC2GU04GW,125-JSM
- Store part #
- C53114358
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C53114358
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.10 | ₹125.50 |
| 50+ | ₹19.88 | ₹994.00 |
| 150+ | ₹17.65 | ₹2,647.50 |
| 500+ | ₹14.86 | ₹7,430.00 |
| 3,000+ | ₹13.61 | ₹40,830.00 |
| 6,000+ | ₹12.87 | ₹77,220.00 |
5 × ₹25.10
₹125.50
excl. GST
₹148.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2GU04GW,125-JSM
₹125.50 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 8.4ns@3.3V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
This device provides two unbuffered inverters. Each inverter features a single-stage unbuffered output. The inputs can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V-tolerant inputs for 5V logic interfacing
- ±24mA output drive at VCC = 3.0V
- CMOS low power consumption
- Operating temperature range: -40°C to +125°C
- Package: SOT-23-6/SOT-363
