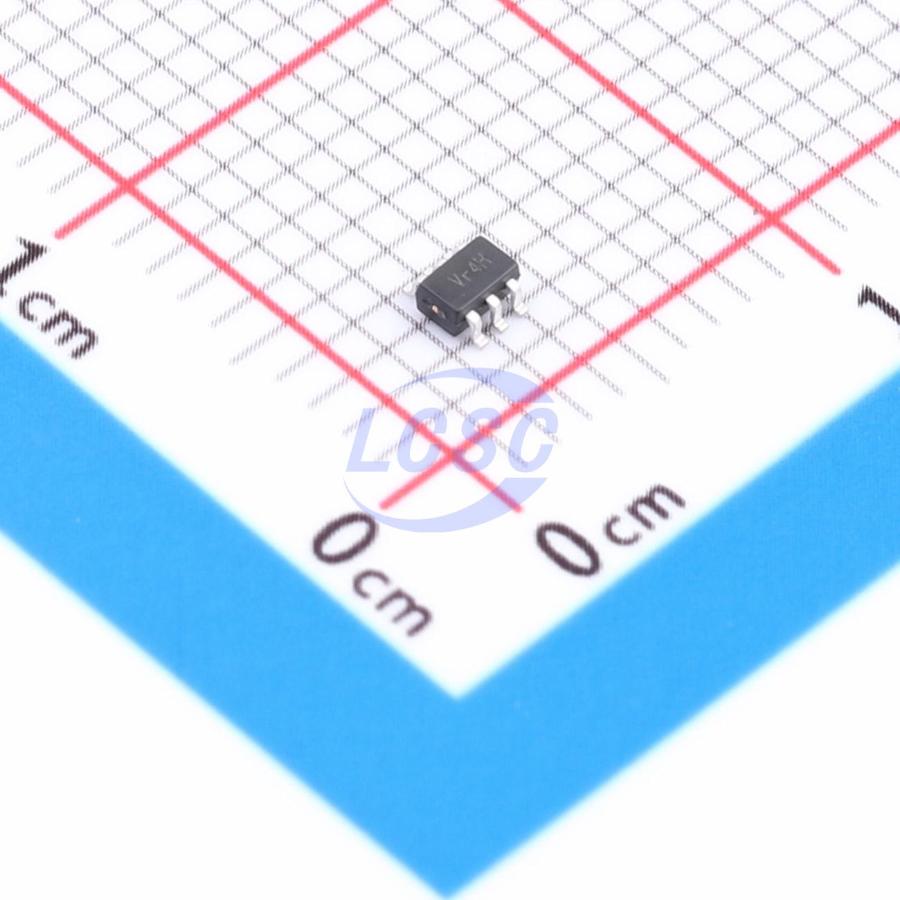

MDD(Microdiode Semiconductor)Datasheet (PDF)
74LVC2GU04GW
1.65V~5.5V 1.3ns@5.5V,50pF 4uA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC2GU04GW
- Store part #
- C53185101
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,055 in stock
#C53185101
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.82 | ₹54.10 |
| 50+ | ₹8.53 | ₹426.50 |
| 150+ | ₹7.38 | ₹1,107.00 |
| 500+ | ₹6.52 | ₹3,260.00 |
| 3,000+ | ₹5.83 | ₹17,490.00 |
| 6,000+ | ₹5.49 | ₹32,940.00 |
5 × ₹10.82
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2GU04GW
₹54.10 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 1.3ns@5.5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
74LVC2GU04 is a dual unbuffered inverter. Its inputs can be driven by 3.3 V or 5 V devices. This feature makes the device suitable for use as a level translator in mixed 3.3 V and 5 V environments.
Key features
- Wide supply voltage range: 1.65 V to 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- ±24 mA output drive capability (VCC = 3.0 V)
- CMOS low power consumption
- Latch-up performance exceeds 100 mA
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V
- MM JESD22-A115C Class C exceeds 550 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
