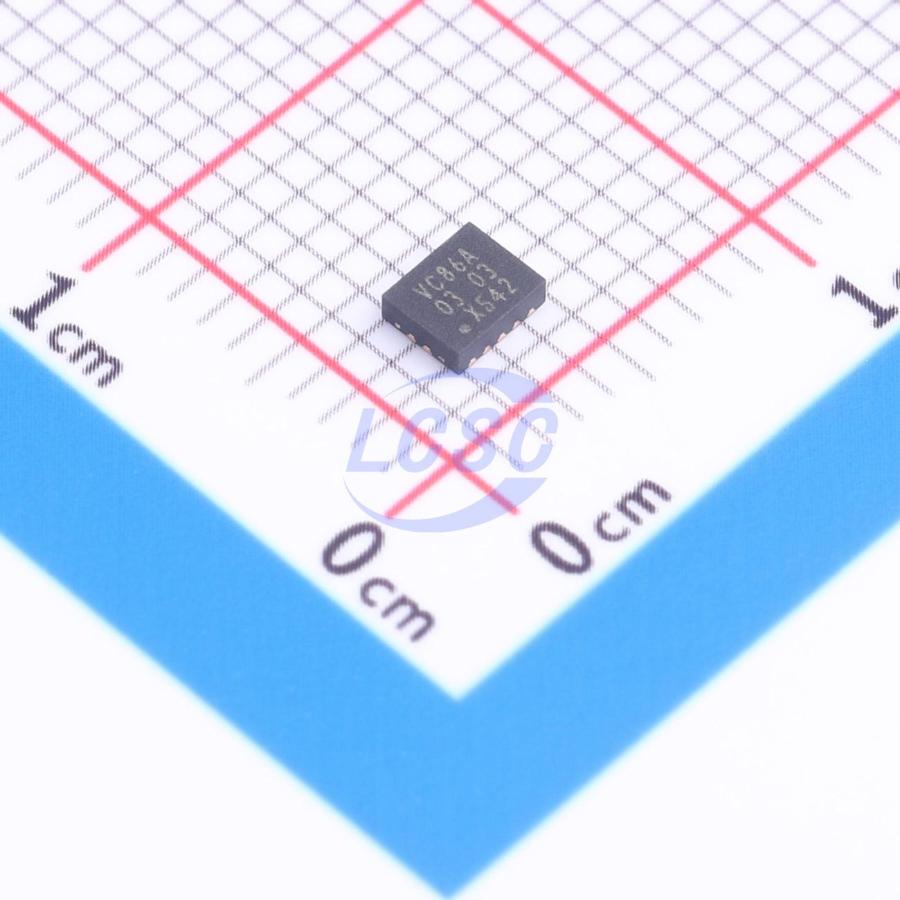

74LVC86ABQ,115
Schmitt trigger 1.2V~3.6V 5ns@3V,50pF 40uA DHVQFN-14(2.5x3) Gates and Inverters RoHS
DHVQFN-14(2.5x3)ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC86ABQ,115
- Store part #
- C548852
- Package / case
- DHVQFN-14(2.5x3)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C548852
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.64 | ₹153.20 |
| 50+ | ₹23.93 | ₹1,196.50 |
| 150+ | ₹21.06 | ₹3,159.00 |
| 500+ | ₹17.48 | ₹8,740.00 |
| 3,000+ | ₹15.88 | ₹47,640.00 |
| 6,000+ | ₹14.91 | ₹89,460.00 |
5 × ₹30.64
₹153.20
excl. GST
₹180.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC86ABQ,115
₹153.20 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.2V~3.6V
- Propagation Delay
- 5ns@3V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 580mV~800mV
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.072 g
Overview
The 74LVC86A is a quad 2-input EXCLUSIVE-OR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Applications
- Translator use in mixed 3.3V and 5V environments
Key features
- Overvoltage tolerant inputs to 5.5 V
- Wide supply voltage range from 1.2 to 3.6 V
- CMOS low power consumption
- Direct interface with TTL levels
- Complies with JEDEC standard:
- JESD8-7A (1.65 V to 1.95 V)
- JESD8-5A (2.3 V to 2.7 V)
- JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to 125 °C
