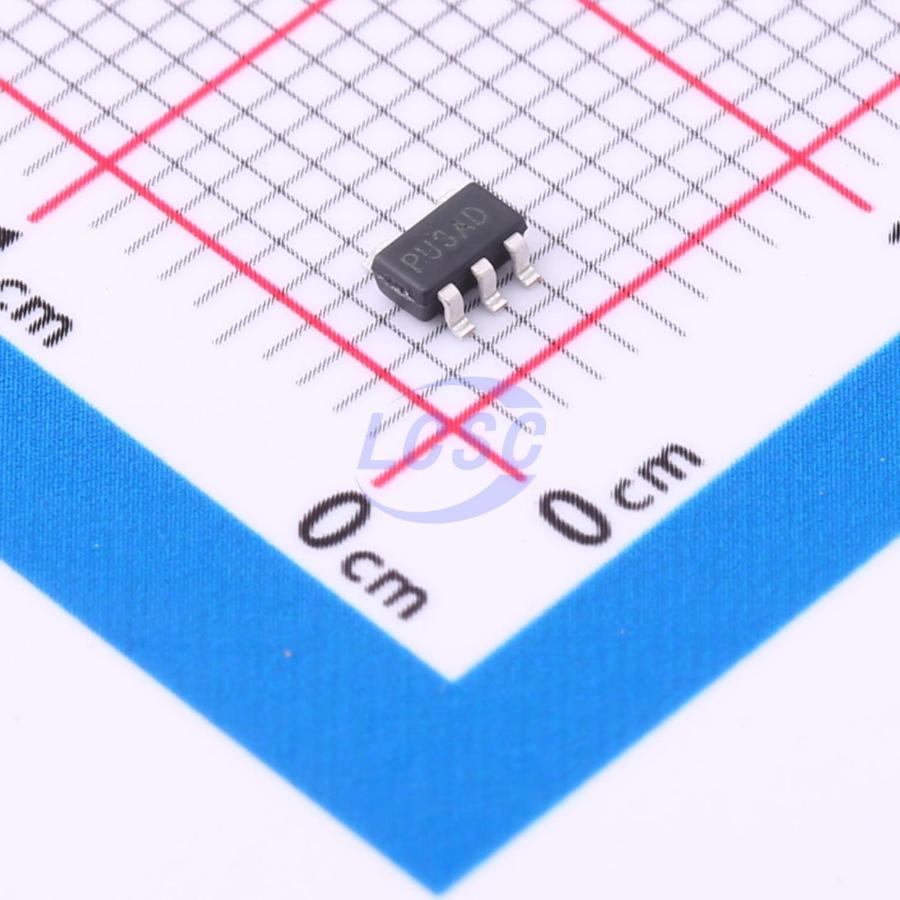

SINGLE INVERTER GATE

Manufacturer: DIODES
Manufacturer part #: 74LVCE1G04W5-7
Store part #: C842483
Package / case: SOT-25-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,755 in stock

#C842483

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.03	₹85.15
50+	₹13.60	₹680.00
150+	₹11.89	₹1,783.50
500+	₹10.61	₹5,305.00
3,000+	₹9.59	₹28,770.00
6,000+	₹9.08	₹54,480.00

Quantity (min 5, multiples of 5)

5 × ₹17.03

₹85.15

excl. GST

₹100.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVCE1G04W5-7

₹85.15 for 5 + GST

Specifications

output type: Push-pull
Input Type: TTL兼容CMOS
Logic Family: 74LVCE
Voltage - Supply: 1.4V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 3.3ns@5V,50pF
Features: Power shutdown protection
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.066 g

Overview

The 74LVCE1G04 is a single inverter gate with a standard totem pole output. The device is designed for operation with a power supply range of 1.4V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down.

Applications

Voltage Level Shifting
General Purpose Logic
PCs, networking, notebooks, netbooks, PDAs
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Cell Phones, Personal Navigation / GPS
MP3 players, Cameras, Video Recorders

Key features

Extended Supply Voltage Range from 1.4 to 5.5V
Switching speed characterized for operation at 1.5V Offers 30% speed improvement over LVC at 1.8V
±24mA Output Drive at 3.3V CMOS low power consumption
IOFF Supports Partial-Power-Down Mode Operation
Input accepts up to 5.5V
ESD Protection Tested per JESD 22 Exceeds 200-V Machine Model (A115-A) Exceeds 2000-V Human Body Model (A114-A)
Latch-Up Exceeds 100mA per JESD 78, Class II
Range of Package Options
Direct Interface with TTL Levels
SOT25, SOT353, and DFN1410: Assembled with “Green” Molding Compound (no Br, Sb)
Lead Free Finish/ RoHS Compliant
