Wuxi I-core ElecDatasheet (PDF)

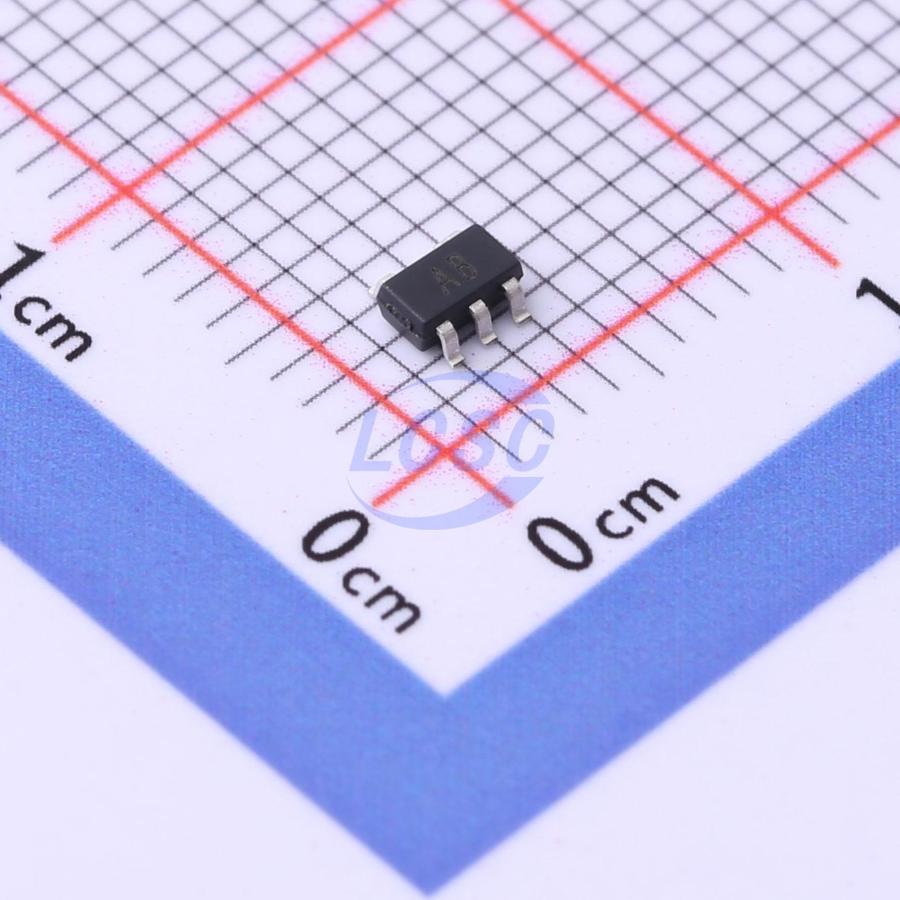

AiP74LVC1G04GB235.TR
TTL兼容CMOS 1.65V~5.5V 1.6ns@5V,50pF 4uA 1 SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single Inverter
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LVC1G04GB235.TR
- Store part #
- C3294713
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,464 in stock
#C3294713
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹12.40 | ₹12.40 |
| 10+ | ₹9.59 | ₹95.90 |
| 30+ | ₹8.18 | ₹245.40 |
| 100+ | ₹7.13 | ₹713.00 |
| 500+ | ₹6.28 | ₹3,140.00 |
| 1,000+ | ₹5.86 | ₹5,860.00 |
1 × ₹12.40
₹12.40
excl. GST
₹14.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LVC1G04GB235.TR
₹12.40 for 1 + GST
Specifications
- output type
- Push-pull
- Input Type
- TTL兼容CMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 1.6ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Output Logic Level - High
- 1.2V;1.9V;2V;3.4V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The AiP74LVC1G04 provides one inverting buffer. Input can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- 5V tolerant inputs for interfacing with 5V logic
- ±24mA output drive (V_CC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- Input accepts voltages up to 5V
- Specified from -40°C to +105°C
- Packaging information: SOT-23-5/SOT-353
