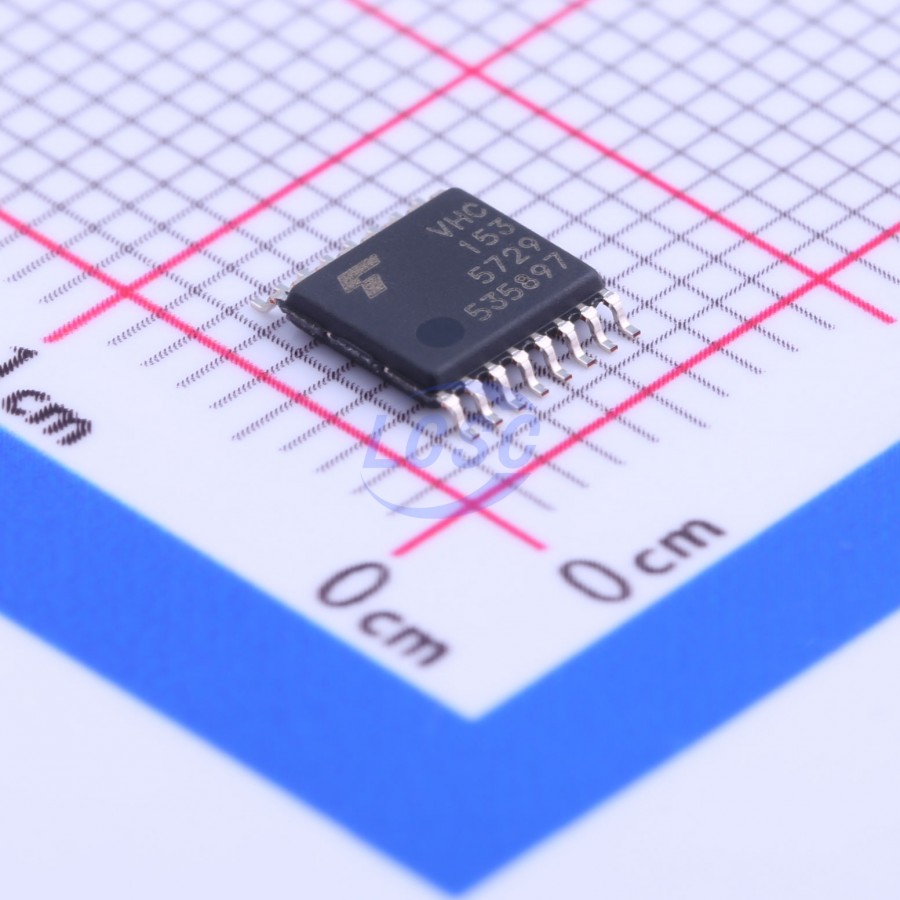

74VHC153FT(BJ)

The 74VHC153FT is an advanced high speed CMOS DUAL 4-CHANNEL MULTIPLEXERs fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. Each of these data (1C0-1C3, 2C0-2C3) is selected by the two address inputs A and B. Separate strobe inputs (1G, 2G) are provided for each of the two four-line sections. The strobe input (G (overline)) can be used to inhibit the data output; the output is fixed in low level while the strobe input is held high. An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.

Applications

• 5V to 3V systems and dual-supply systems such as battery backup.

Key features

• AEC-Q100 (Rev. H)
• Wide operating temperature: Topr = -40 to 125 ℃
• High speed: tpd = 5.0 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 4.0 μA (max) at Ta = 25 ℃
• High noise immunity: ΔVNIH = VNIL = 0.28 VCC (min)
• Power down protection is provided on all inputs.
• Balanced propagation delays: tLH ≈ tHL
• Wide operating voltage range: VCC(opr) = 2.0 V to 5.5 V
• Pin and function compatible with 74ALS153.
