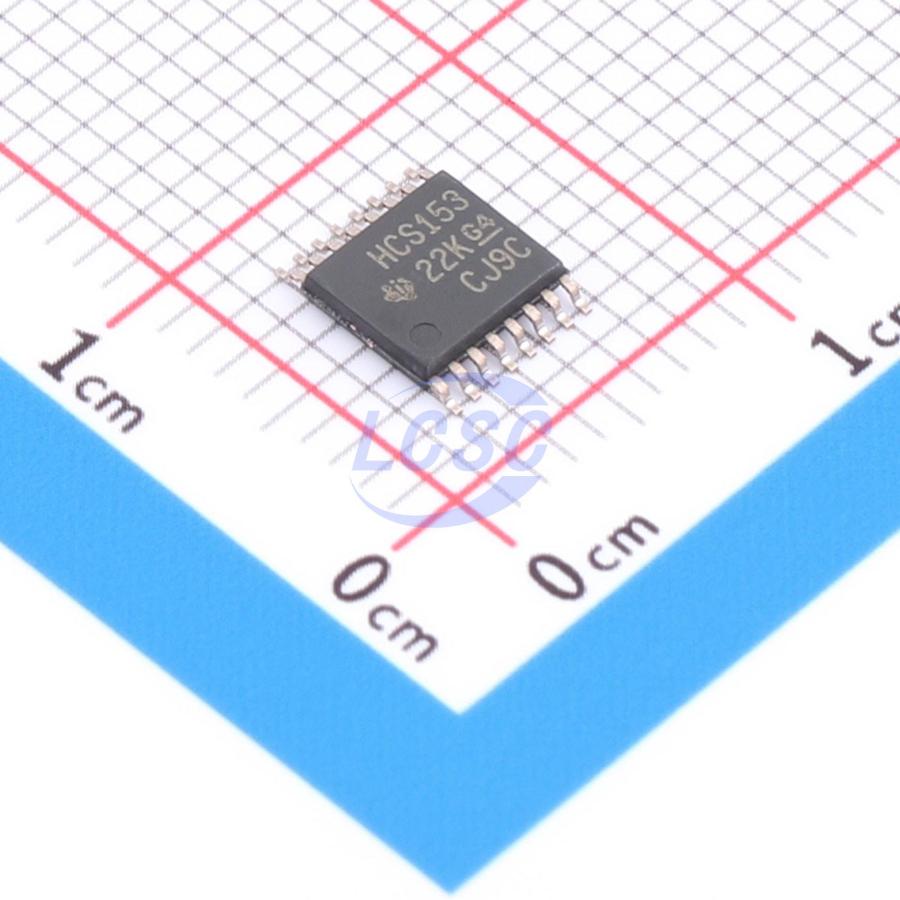

SN74HCS153PWR

The SN74HCS153 is a dual data selector/multiplexer containing full binary decoding to select one of four data sources. Both channels are controlled by the same address select inputs, and each channel includes its own strobe (G (overline)) input. A high level at the strobe terminal forces the respective output low. The SN74HCS153 is a high speed silicon gate CMOS multiplexer well suited to multiplexing and data routing applications. It contains two 4:1 multiplexers. The SN74HCS153 operates asynchronously, with each Y output being equal to the input selected by the address inputs (A, B). Both channels are controlled by the same address inputs. The strobe (G (overline)) inputs force the respective Y outputs low, regardless of the state of other inputs. All inputs include Schmitt-triggers allowing for slow input transitions and providing additional noise margin.

Applications

• Data selection
• Multiplexing

Key features

• Wide operating voltage range: 2 V to 6 V
• Schmitt-trigger inputs allow for slow or noisy input signals
• Low power consumption Typical ICC of 100 nA
• Typical input leakage current of ±100 nA
• ±7.8 mA output drive at 6 V
• Extended ambient temperature range: -40 ℃ to +125 ℃, TA
