TOSHIBADatasheet (PDF)

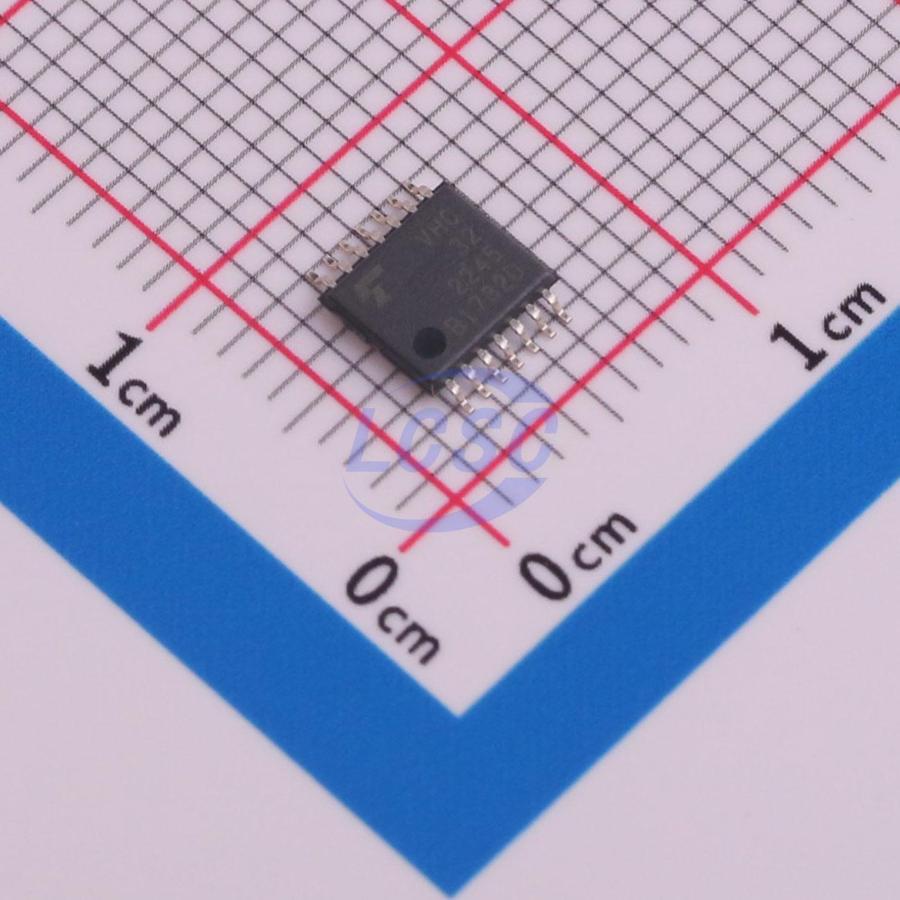

74VHC32FT(BE)
2V~5.5V 7.5ns@5V,50pF 2uA TSSOP14B Gates and Inverters
TSSOP14BRoHSActive
Quad 2-Input OR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- 74VHC32FT(BE)
- Store part #
- C7421285
- Package / case
- TSSOP14B
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,582 in stock
#C7421285
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹32.21 | ₹32.21 |
| 10+ | ₹28.09 | ₹280.90 |
| 30+ | ₹26.30 | ₹789.00 |
| 100+ | ₹23.98 | ₹2,398.00 |
| 500+ | ₹22.90 | ₹11,450.00 |
| 1,000+ | ₹22.37 | ₹22,370.00 |
1 × ₹32.21
₹32.21
excl. GST
₹38.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74VHC32FT(BE)
₹32.21 for 1 + GST
Specifications
- Logic Family
- 74VHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 7.5ns@5V,50pF
- Output Logic Level - Low
- 360mV
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Input Logic Level - High
- 1.5V
- Input Logic Level - Low
- 500mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.94V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The 74VHC32FT is an advanced high speed CMOS 2-INPUT OR GATE fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 4 stages including buffer output, which provide high noise immunity and stable output. An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74VHC32FT(BJ)#C7421286TOSHIBA · TSSOP14B | TOSHIBA | TSSOP14B | 930 | ₹27.63 · 930 in stock | View |
 | MC74VHC32DTR2G#C904182onsemi · TSSOP-14 | onsemi | TSSOP-14 | 94 | ₹51.60 · 94 in stock | View |
| 74VHC32FT(TB,BJ)#C26891450TOSHIBA · TSSOP-14B | TOSHIBA | TSSOP-14B | 2,477 | ₹74.59 · 2,477 in stock | View | |
 | 74VHC32MTCX#C6149onsemi · TSSOP-14 | onsemi | TSSOP-14 | 130 | ₹34.51 · 130 in stock | View |
 | SN74AHC32PWR#C132989TI · TSSOP-14 | TI | TSSOP-14 | 4,245 | ₹37.83 · 4,245 in stock | View |
