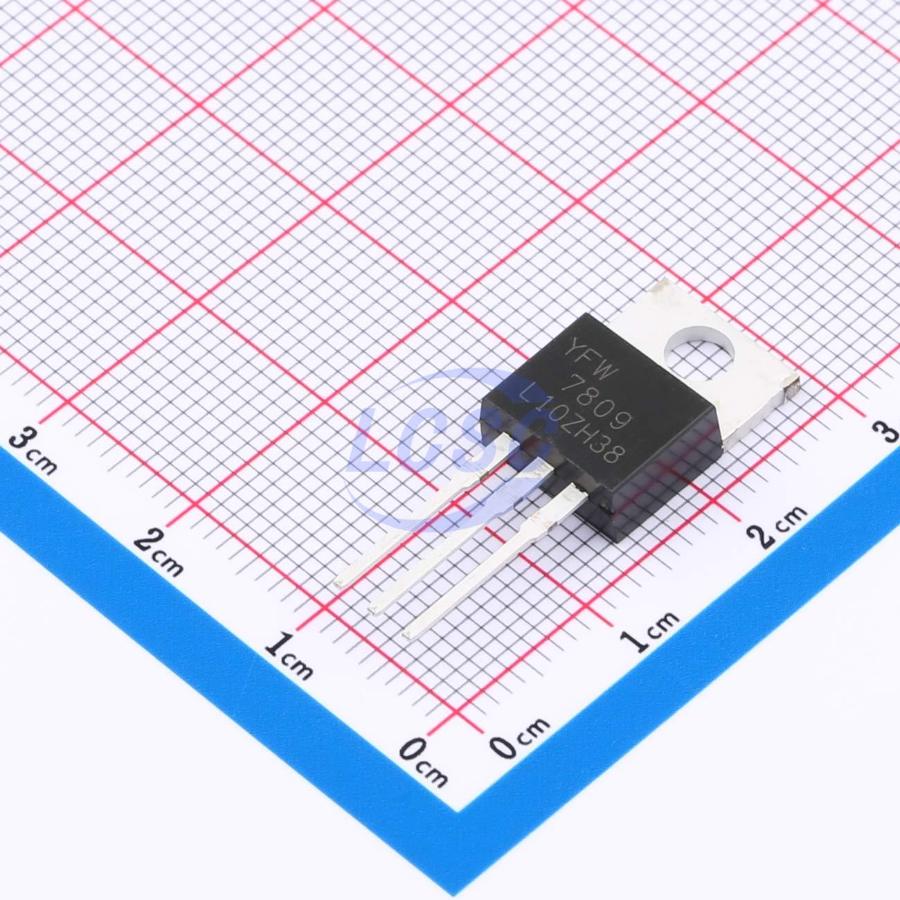

YFW

7809

9V Positive Fixed TO-220AB Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-220ABROHS CompliantActive

3-Terminal 1.5A Positive Voltage Regulator

Manufacturer: YFW
Manufacturer part #: 7809
Store part #: C19272915
Package / case: TO-220AB
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

490 in stock

#C19272915

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹50.96	₹50.96
10+	₹39.90	₹399.00
50+	₹35.79	₹1,789.50
100+	₹29.93	₹2,993.00
500+	₹27.32	₹13,660.00
1,000+	₹25.81	₹25,810.00

Quantity (min 1)

1 × ₹50.96

₹50.96

excl. GST

₹60.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

7809

₹50.96 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 9V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃
Supply Current (Iq): 8mA
Output Configuration: Positive
Operating Voltage: 24V
Output Current: 1.5A
Features: Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.621 g

Overview

The 78XX series of three-terminal positive regulators are available in the TO-220A /TO-252 package with several fixed output voltages making it useful in a wide range of applications.

Key features

Output Current up to 1.5A
Output Voltages of 5,6,8,10,12,15V
Thermal Overload Protection
Short Circuit Protection
Output Transistor Safe Operating area (SOA) Protection
