YFWDatasheet (PDF)

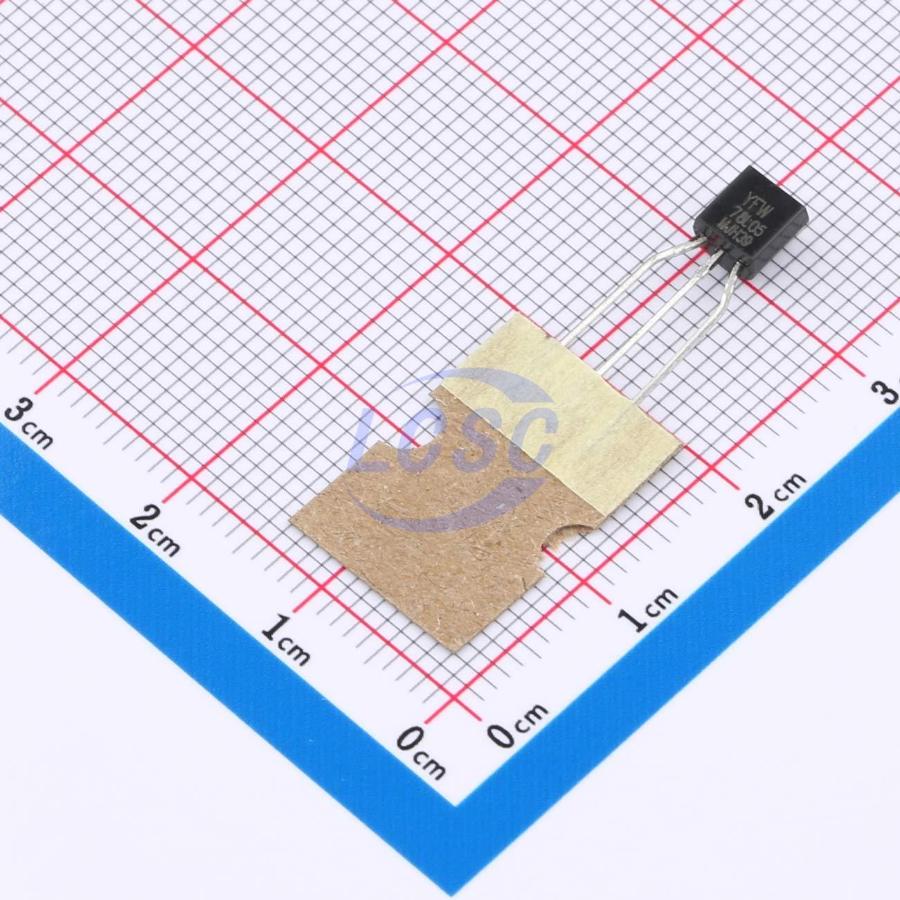

78L05 TB
5V Positive Fixed TO-92 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92ROHS CompliantActive
3-Terminal 100mA Positive Voltage Regulator
- Manufacturer
- YFW
- Manufacturer part #
- 78L05 TB
- Store part #
- C45662284
- Package / case
- TO-92
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C45662284
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.86 | ₹88.60 |
| 100+ | ₹6.99 | ₹699.00 |
| 300+ | ₹6.05 | ₹1,815.00 |
| 2,000+ | ₹5.46 | ₹10,920.00 |
| 4,000+ | ₹4.90 | ₹19,600.00 |
| 10,000+ | ₹4.62 | ₹46,200.00 |
10 × ₹8.86
₹88.60
excl. GST
₹104.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
78L05 TB
₹88.60 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Box-packed
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.309 g
Overview
The 78LXX series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The 78LXX series used as Zener diode/resistor combination replacement, offers an effective Output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Key features
- Output Current up to 100mA
- Output Voltages of 3.3, 5, 6, 8, 9, 12, 15, 18, 24V
- Thermal Overload Protection
- Short Circuit Protection
- No External Components are required
- Available in either ±5% (AC) or ±10% (Ω) selection
