JSMSEMI

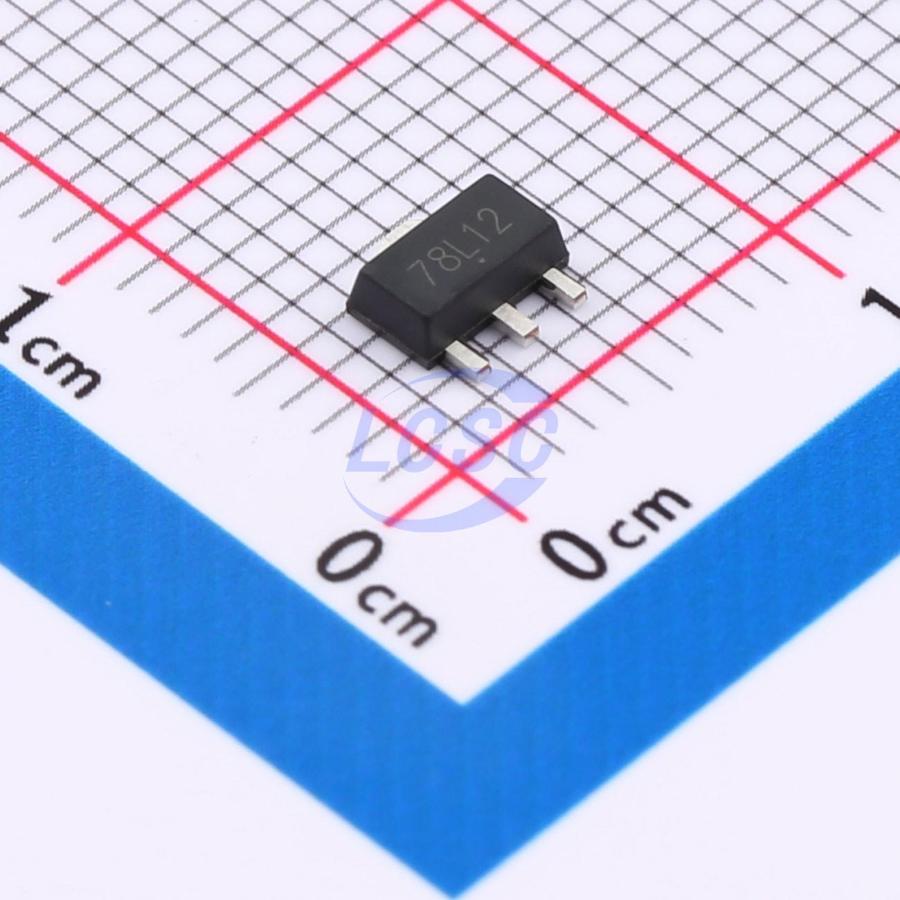

78L12

Linear Voltage Regulator IC Positive Fixed 1 Output 40mA SOT-89

SOT-89ROHS CompliantActive

Three-Terminal Low Current Positive Voltage Regulators

Manufacturer: JSMSEMI
Manufacturer part #: 78L12
Store part #: C41421780
Package / case: SOT-89
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,130 in stock

#C41421780

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.66	₹56.60
100+	₹4.45	₹445.00
300+	₹3.84	₹1,152.00
1,000+	₹3.59	₹3,590.00
5,000+	₹3.23	₹16,150.00
10,000+	₹3.04	₹30,400.00

Quantity (min 10, multiples of 10)

10 × ₹5.66

₹56.60

excl. GST

₹66.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

78L12

₹56.60 for 10 + GST

Specifications

Output Voltage: 12V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃@(Tj)
Supply Current (Iq): 4.2mA
Output Configuration: Positive
Output Current: 40mA
Operating Voltage: 27V
Features: Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.152 g

Overview

Applications

Three-terminal positive voltage regulator.

Key features

Wide range of available, fixed output voltage.
Low cost.
Internal short-circuit current limiting.
Internal thermal overload protection.
No external components required.
Complementary negative regulators offered (79LXX series).
