Jingdao Microelectronics

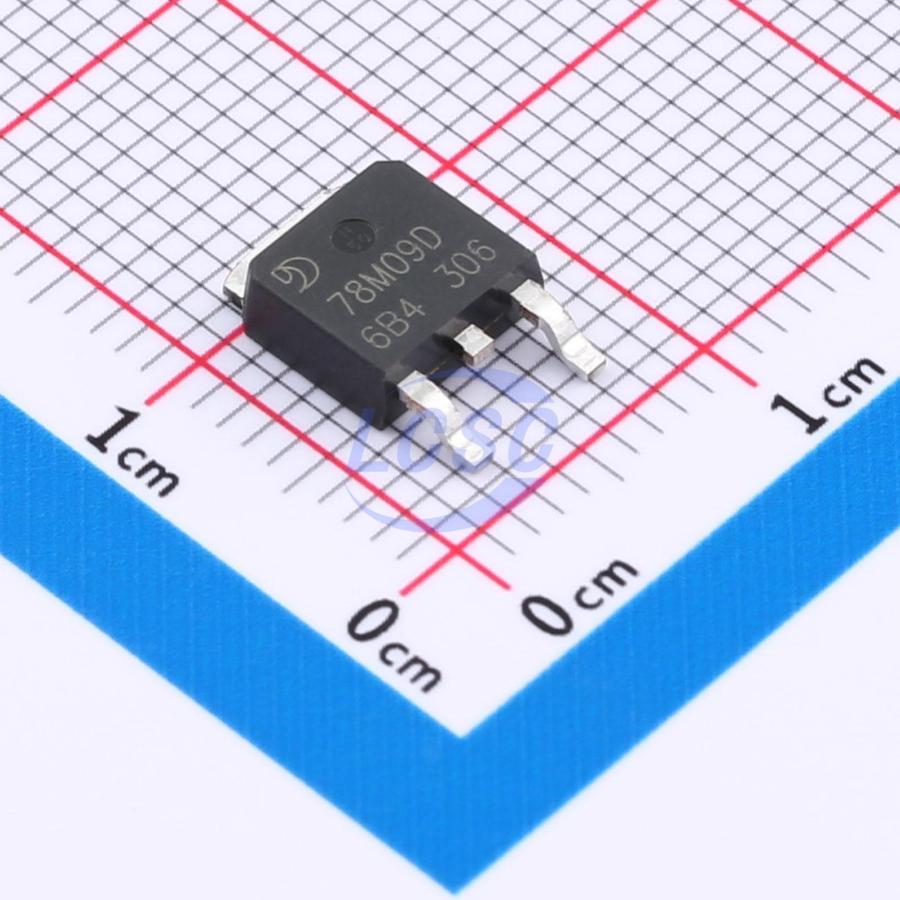

78M09D

9V Positive Fixed TO-252W Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252WROHS CompliantActive

3-TERMINAL 0.5A POSITIVE VOLTAGE REGULATOR

Manufacturer: Jingdao Microelectronics
Manufacturer part #: 78M09D
Store part #: C7528187
Package / case: TO-252W
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,425 in stock

#C7528187

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹16.79	₹83.95
50+	₹13.28	₹664.00
150+	₹11.52	₹1,728.00
500+	₹10.20	₹5,100.00
2,500+	₹9.14	₹22,850.00
5,000+	₹8.61	₹43,050.00

Quantity (min 5, multiples of 5)

5 × ₹16.79

₹83.95

excl. GST

₹99.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

78M09D

₹83.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 9V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 6mA
Output Configuration: Positive
Operating Voltage: 24V
Output Current: 500mA
Features: Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.467 g

Overview

The 78MXXD family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current to 0.5A

Key features

Peak output current to 0.5A
Fixed output voltage of 5V, 6V, 8V, 9V, 12V, 15V available
Thermal overload shutdown protection.
Short circuit current limiting.
Output transistor SOA protection.
