8002B

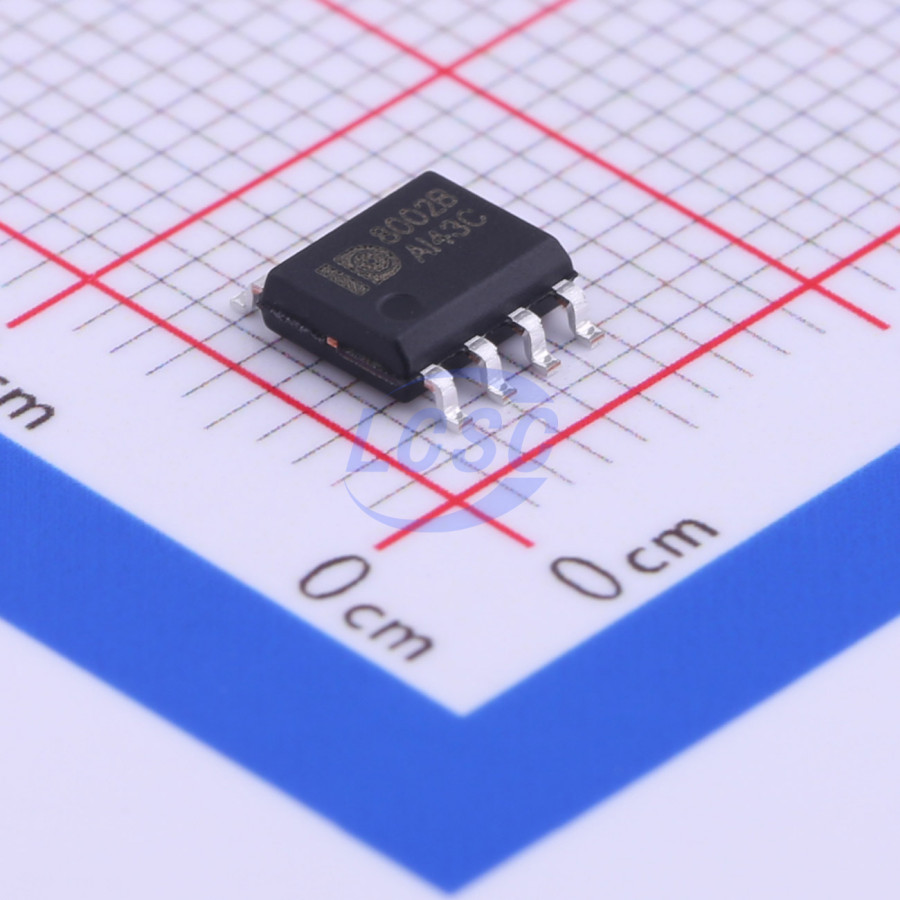

The 8002B is a Class AB, mono, bridge audio power amplifier with shutdown mode. Operating at 5V with a 1KHz input frequency, it delivers a maximum output power of 3W (4Ω load, THD<10%) and 2W (4Ω load, THD<1%). Total harmonic distortion plus noise is less than 1% across the 20Hz to 20KHz audio frequency range. The application circuit is simple, requiring minimal external components to deliver high-quality output power, with no external coupling capacitors, bootstrap capacitors, snubber networks, or feedback resistors required at the output. The 8002B is available in a SOP-8 package, making it particularly suitable for low-power, compact portable systems. It supports a low-power shutdown mode via a control pin and features built-in thermal auto-shutdown protection. The device operates with unity-gain stability and allows flexible voltage gain adjustment through external resistor configuration.

Applications

• Personal computers
• Passive speakers
• Toys and game consoles
• Portable consumer electronics

Key features

• THD+N < 10% (2.8W), THD+N < 1% (2W)
• High output power (4Ω load, 1KHz frequency)
• Low shutdown mode leakage current: 0.6μA (typical)
• Externally adjustable gain
• Unity-gain stable
• Wide supply voltage range: 2.2V ~ 6V
• No coupling capacitors, bootstrap capacitors, or snubber networks required
• SHUTDOWN pin must not be left floating; connect to GND when not in use
• Pin 3 has no function
• SOP-8 package
