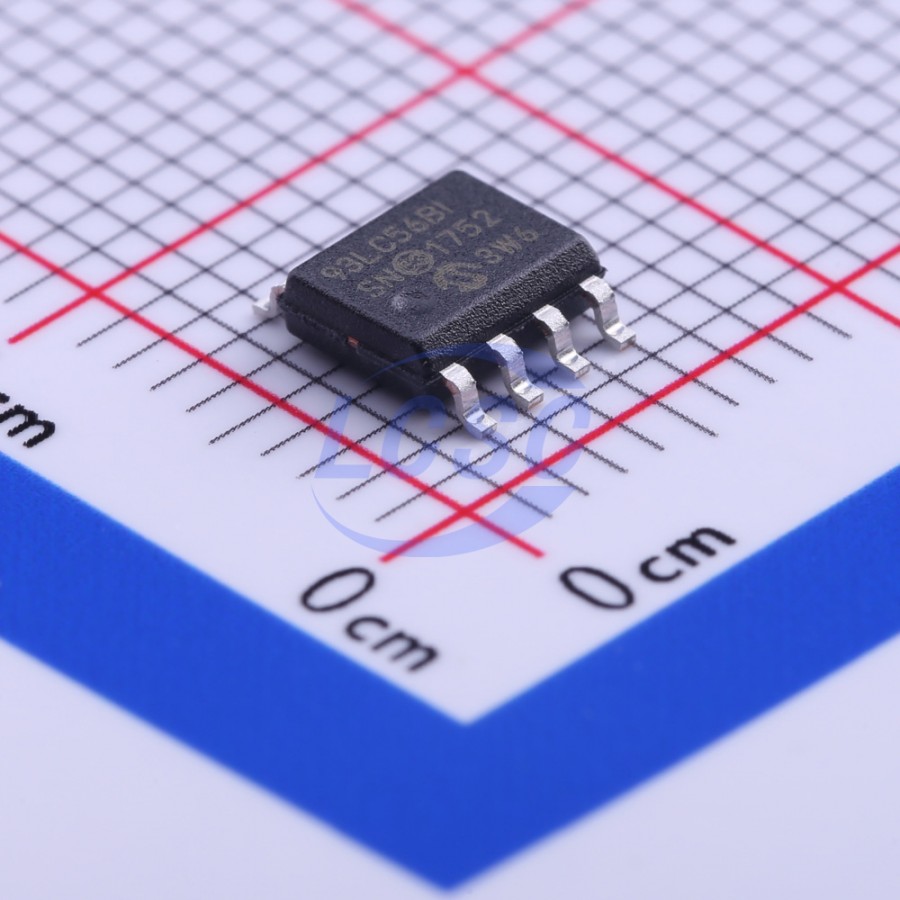

93LC56B-I/SN
2Kbit 2MHz SPI SOIC-8 Memory RoHS
2K Microwire Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,476 in stock
#C183620
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.25 | ₹91.25 |
| 10+ | ₹75.61 | ₹756.10 |
| 30+ | ₹67.57 | ₹2,027.10 |
| 100+ | ₹59.75 | ₹5,975.00 |
| 500+ | ₹55.18 | ₹27,590.00 |
| 1,000+ | ₹52.80 | ₹52,800.00 |
1 × ₹91.25
₹91.25
excl. GST
₹107.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
93LC56B-I/SN
₹91.25 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Power-down/Power-up protection circuit;Software write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 2.5V~5.5V;500uA
- Clock Frequency
- 2MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 6ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
The 93XX56A/B/C devices are 2Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA56C, 93LC56C or 93C56C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93XX56A devices are available, while the 93XX56B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for low-power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.
Key features
- Low-Power CMOS Technology
- ORG Pin to Select Word Size for '56C' Version 256x8-bit Organization, 'A' Version (no ORG) 128x16-bit Organization, 'B' Version (no ORG)
- Self-Timed Erase/Write Cycles (including Auto-Erase)
- Automatic Erase All (ERAL) before Write All (WRAL)
- Power-On/Off Data Protection Circuitry
- Industry Standard 3-Wire Serial I/O
- Device Status Signal (Ready/Busy)
- Sequential Read Function
- 1,000,000 Erase/write Cycles
- Data Retention >200 Years
- Pb-free and RoHS Compliant
- Temperature Ranges Supported: Industrial (I) -40℃ to +85℃, Automotive (E) -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 93LC56BT-I/SN#C6164MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 2,346 | ₹74.75 · 2,346 in stock | View |
| 93LC56BXT-I/SN#C2061435MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹87.65 · 10 in stock | View | |
 | 93LC56B/SN#C615404MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 41 | ₹114.27 · 41 in stock | View |
 | 93LC56A/SN#C1349276MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 6 | ₹84.86 · 6 in stock | View |
 | 93LC56C-I/SN#C615409MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 125 | ₹128.36 · 125 in stock | View |
