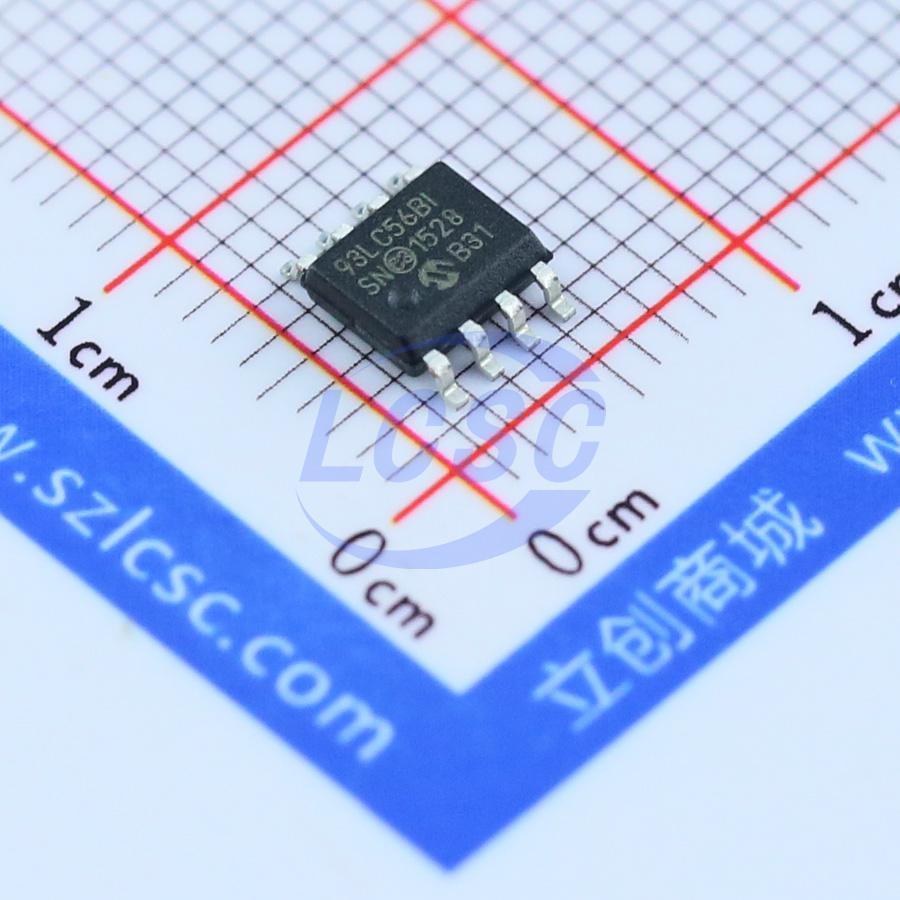

93LC56BT-I/SN
2Kbit 3MHz SPI SOIC-8 Memory RoHS
2K Microwire Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,346 in stock
#C6164
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.75 | ₹74.75 |
| 10+ | ₹59.32 | ₹593.20 |
| 30+ | ₹52.59 | ₹1,577.70 |
| 100+ | ₹44.33 | ₹4,433.00 |
| 500+ | ₹40.64 | ₹20,320.00 |
| 1,000+ | ₹38.46 | ₹38,460.00 |
1 × ₹74.75
₹74.75
excl. GST
₹88.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
93LC56BT-I/SN
₹74.75 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Power-down/Power-up protection circuit;Software write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 2.5V~5.5V;2mA
- Clock Frequency
- 3MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 2ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The 93XX56A/B/C devices are 2Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA56C, 93LC56C or 93C56C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93XX56A devices are available, while the 93XX56B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for low-power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.
Key features
- Low-Power CMOS Technology
- ORG Pin to Select Word Size for '56C' Version 256x8-bit Organization, 'A' Version (no ORG) 128x16-bit Organization, 'B' Version (no ORG)
- Self-Timed Erase/Write Cycles (including Auto-Erase)
- Automatic Erase All (ERAL) before Write All (WRAL)
- Power-On/Off Data Protection Circuitry
- Industry Standard 3-Wire Serial I/O
- Device Status Signal (Ready/Busy)
- Sequential Read Function
- 1,000,000 Erase/write Cycles
- Data Retention >200 Years
- Pb-free and RoHS Compliant
- Temperature Ranges Supported: Industrial (I) -40℃ to +85℃, Automotive (E) -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 93LC56B-I/SN#C183620MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1,476 | ₹91.25 · 1,476 in stock | View |
| 93AA56AT-I/SN#C615839MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹88.91 · 10 in stock | View | |
| 93AA56CT-I/SN#C615843MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 8 | ₹87.46 · 8 in stock | View | |
 | 93AA56BT-I/SN#C2062856MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 97 | ₹77.20 · 97 in stock | View |
| 93LC56C-E/SN#C1351689MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 144 | ₹85.62 · 144 in stock | View | |
