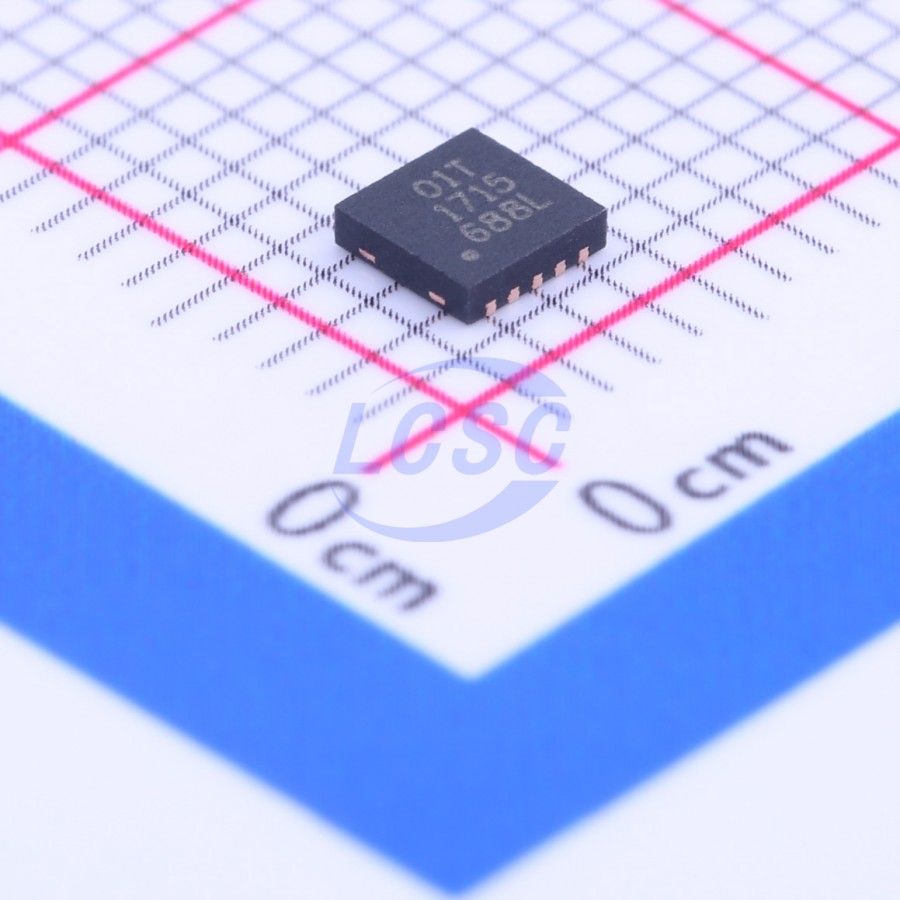

A3901SEJTR-T
DFN-10-EP(3x3) Motor Drivers, Controllers RoHS
Dual Full Bridge Low Voltage Motor Driver
- Manufacturer
- ALLEGRO
- Manufacturer part #
- A3901SEJTR-T
- Store part #
- C146403
- Package / case
- DFN-10-EP(3x3)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,135 in stock
#C146403
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.75 | ₹132.75 |
| 10+ | ₹107.55 | ₹1,075.50 |
| 30+ | ₹94.73 | ₹2,841.90 |
| 100+ | ₹75.17 | ₹7,517.00 |
| 500+ | ₹67.57 | ₹33,785.00 |
| 1,500+ | ₹63.87 | ₹95,805.00 |
1 × ₹132.75
₹132.75
excl. GST
₹156.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
A3901SEJTR-T
₹132.75 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Over temperature protection;Dead-time / shoot-through protection
- Technology
- Yes
- Operating Temperature
- -20℃~+85℃
- Step Resolution
- 1;2
- Output Current
- 400mA
- Control Voltage
- 2.5V~5.5V
- RDS(on)
- 500mΩ
- Motor Drive Voltage(Vm)
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The A3901 is a dual full-bridge motor driver, designed for low voltage portable applications involving bipolar stepper or brush DC motors. The outputs have been optimized for low voltage drop, with currents up to ±400 mA (±800 mA with outputs paralleled) and an operating voltage range of 2.5 to 5.5 V. The four inputs (IN1 to IN4) can control a bipolar stepper motor in full- or half-step mode, or DC motors in forward, reverse, or brake mode. The inputs can be PWMed for current or speed control at frequencies up to 250 kHz. Internal protection circuitry includes thermal shut down (TSD) and crossover (shoot-through) protection. The A3901 is supplied in a 3 mm x 3 mm x 0.75 mm nominal height, 10-lead DFN package, with exposed thermal pad (package “EJ”). This small footprint package is lead (Pb) free, with 100% matte tin leadframe plating.
Key features
- Low RDS(on) outputs
- Full- and half-stepping capability
- Small package
- Forward, reverse, and brake modes for DC motors
- Sleep mode with zero current drain
- PWM control up to 250 kHz
- Crossover-current protection
- Thermal shutdown (TSD)
