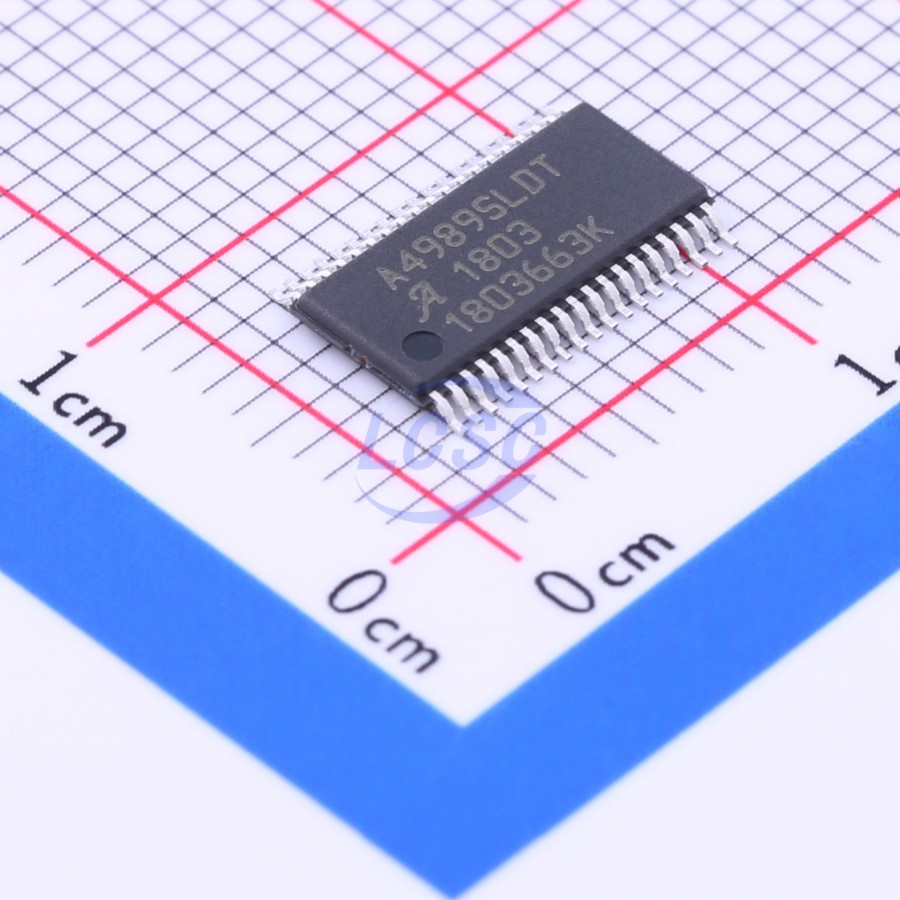

A4989SLDTR-T
TSSOP-38-4.4mm Motor Drivers, Controllers RoHS
Dual Full-Bridge MOSFET Driver with Microstepping Translator
- Manufacturer
- ALLEGRO
- Manufacturer part #
- A4989SLDTR-T
- Store part #
- C239086
- Package / case
- TSSOP-38-4.4mm
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,433 in stock
#C239086
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹435.61 | ₹435.61 |
| 10+ | ₹362.40 | ₹3,624.00 |
| 30+ | ₹318.95 | ₹9,568.50 |
| 100+ | ₹274.84 | ₹27,484.00 |
| 500+ | ₹254.64 | ₹1,27,320.00 |
| 1,000+ | ₹245.51 | ₹2,45,510.00 |
1 × ₹435.61
₹435.61
excl. GST
₹514.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
A4989SLDTR-T
₹435.61 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Dead-time / shoot-through protection;Over temperature protection;Under-voltage lockout
- Technology
- No
- Interface
- STEP/DIR
- Operating Temperature
- -20℃~+85℃
- Step Resolution
- 16
- Control Voltage
- 3V~5.5V
- RDS(on)
- 14Ω
- Motor Drive Voltage(Vm)
- 12V~50V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.2 g
Overview
The A4989 is a dual full-bridge gate driver with integrated microstepping translator suitable for driving a wide range of higher power industrial bipolar 2-phase stepper motors (typically 30 to 500 W). Motor power is provided by external N-channel power MOSFETs at supply voltages from 12 to 50 V. This device contains two sinusoidal DACs that generate the reference voltage for two separate fixed-off-time PWM current controllers. These provide current regulation for external power MOSFET full-bridges. Motor stepping is controlled by a two-wire step and direction interface, providing complete microstepping control at full-, half-, quarter-, and sixteenth-step resolutions. The fixed-off time regulator has the ability to operate in slow-, mixed-, or fast-decay modes, which results in reduced audible motor noise, increased step accuracy, and reduced power dissipation. The translator is the key to the easy implementation of this IC. Simply inputting one pulse on the STEP input drives the motor one step (full, half, quarter, or sixteenth depending on the microstep select input). There are no phase-sequence tables, high frequency control lines, or complex interfaces to program. This reduces the need for a complex microcontroller. The above-supply voltage required for the high-side N-channel MOSFETs is provided by a bootstrap capacitor. Efficiency is enhanced by using synchronous rectification and the power FETs are protected from shoot-through by integrated crossover control and programmable dead time. In addition to crossover current control, internal circuit protection provides thermal shutdown with hysteresis and undervoltage lockout. Special power-up sequencing is not required. This component is supplied in an 38-pin TSSOP (package LD). The package is lead (Pb) free, with 100% matte tin leadframe plating.
Key features
- 2-wire step and direction interface
- Dual full-bridge gate drive for N-channel MOSFETs
- Operation over 12 to 50 V supply voltage range
- Synchronous rectification
- Cross-conduction protection
- Adjustable mixed decay
- Integrated sinusoidal DAC current reference
- Fixed off-time PWM current control
- Enhanced low current control when microstepping
- Pin compatible with the A3986
