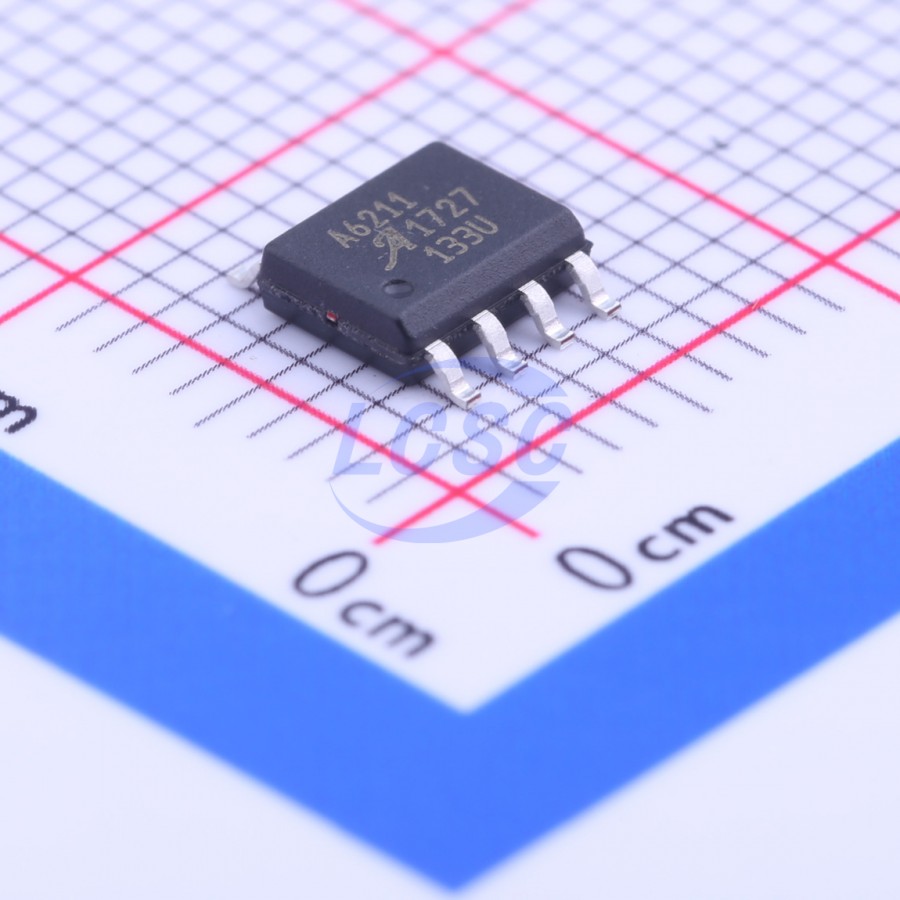

A6211GLJTR-T
1MHz PWM 1 DC-DC 3A 6V~48V SOIC-8-EP LED Drivers RoHS
Constant-Current 3-Ampere PWM Dimmable Buck Regulator LED Driver
- Manufacturer
- ALLEGRO
- Manufacturer part #
- A6211GLJTR-T
- Store part #
- C150827
- Package / case
- SOIC-8-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,839 in stock
#C150827
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.55 | ₹132.55 |
| 10+ | ₹107.78 | ₹1,077.80 |
| 30+ | ₹95.18 | ₹2,855.40 |
| 100+ | ₹83.02 | ₹8,302.00 |
| 500+ | ₹75.62 | ₹37,810.00 |
| 1,000+ | ₹71.93 | ₹71,930.00 |
1 × ₹132.55
₹132.55
excl. GST
₹156.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
A6211GLJTR-T
₹132.55 for 1 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Operating Temperature
- -40℃~+105℃
- Features
- Short Circuit Protection;Over-Temperature Protection (OTP)
- Topology
- Buck
- Voltage - Input(DC)
- 6V~48V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.114 g
Overview
The A6211 is a single IC switching regulator that provides constant-current output to drive high-power LEDs. It integrates a high-side N-channel DMOS switch for DC-to-DC step- down (buck) conversion. A true average current is output using a cycle-by-cycle, controlled on-time method. Output current is user-selectable by an external current sense resistor. Output voltage is automatically adjusted to drive various numbers of LEDs in a single string. This ensures the optimal system efficiency. LED dimming is accomplished by a direct logic input pulsewidth modulation (PWM) signal at the enable pin. The device is provided in a compact 8-pin narrow SOIC package (suffix LJ) with exposed pad for enhanced thermal dissipation It is lead (Pb) free, with 100% matte-tin leadframe plating.
Applications
- General illumination
- Scanners and multifunction printers (light bars)
- Architectural lighting
- Industrial lighting
- Display case lighting / MR16
Key features
- Supply voltage 6 to 48 V
- True average output current control
- 3 A maximum output over operating temperature range
- Cycle-by-cycle current limit
- Integrated MOSFET switch
- Dimming via direct logic input or power supply voltage
- Internal control loop compensation
- Undervoltage lockout (UVLO) and thermal shutdown protection
- Low power shutdown (1 μA typical)
- Robust protection against:
- Adjacent pin-to-pin short
- Pin-to-GND short
- Component open/short faults
