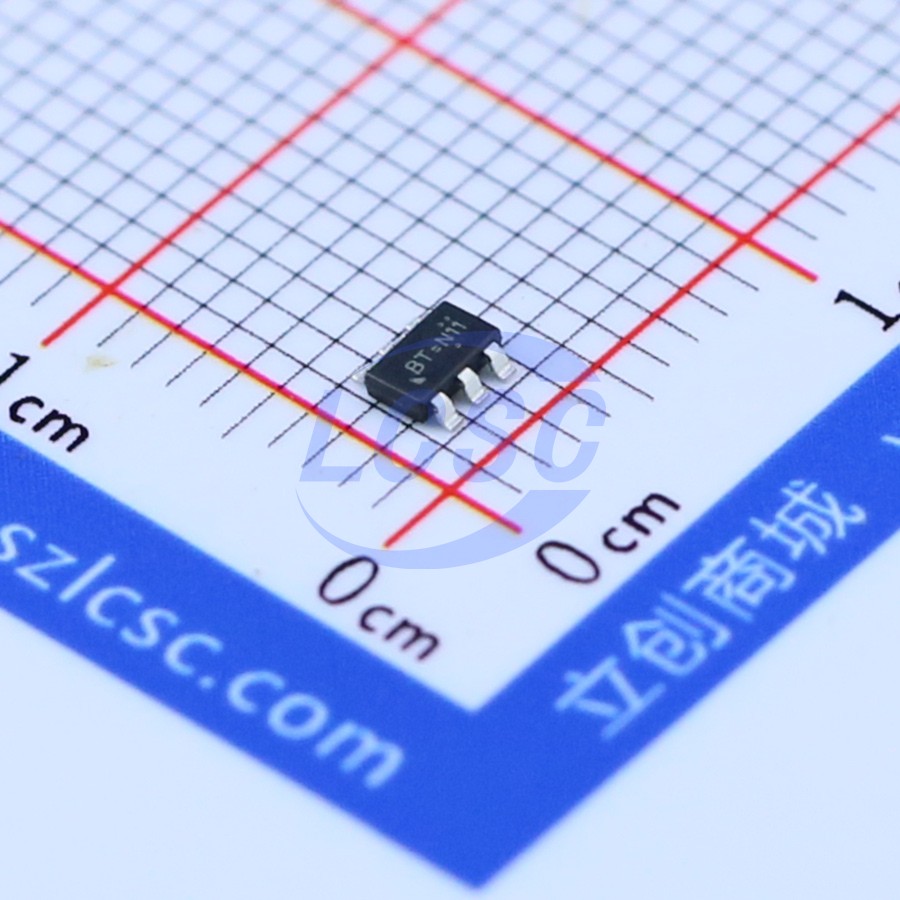

RT9293BGJ6
1MHz PWM DC-DC 2.5V~5.5V SOT-23-6 LED Drivers RoHS
Small Package, High Performance, Asynchronies Boost for 10 WLED Driver
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9293BGJ6
- Store part #
- C36462
- Package / case
- SOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41,765 in stock
#C36462
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.16 | ₹235.80 |
| 50+ | ₹38.33 | ₹1,916.50 |
| 150+ | ₹34.54 | ₹5,181.00 |
| 500+ | ₹29.82 | ₹14,910.00 |
| 3,000+ | ₹20.37 | ₹61,110.00 |
| 6,000+ | ₹19.12 | ₹1,14,720.00 |
5 × ₹47.16
₹235.80
excl. GST
₹278.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9293BGJ6
₹235.80 for 5 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+85℃
- Features
- Over Voltage Protection;Built-in soft-start;Over-Temperature Protection (OTP)
- Topology
- Boost
- Voltage - Input(DC)
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The RT9293 is a high frequency, asynchronous boost converter. The internal MOSFET can support up to 10 White LEDs for backlighting and OLED power application, and the internal soft start function can reduce the inrush current. The device operates with 1- MHz fixed switching frequency to allow small external components and to simplify possible EMI problems. For the protection, the RT9293A provides 50V OVP and the RT9293B provides 50V/20V OVP to allow inexpensive and small- output capacitors with lower voltage ratings. The LED current is initially set with the external sense resistor RSET. The RT9293 is available in the tiny package type TSOT- 23- 6 and WDFN- 8L 2x2 packages to provide the best solution for PCB space saving and total BOM cost.
Applications
- Cellular Phones
- Digital Cameras
- PDAs and Smart Phones and MP3 and OLED.
- Portable Instruments
Key features
- VIN Operating Range: 2.5V to 5.5V
- Internal Power N- MOSFET Switch
- Wide Range for PWM Dimming (100Hz to 200kHz)
- Minimize the External Component Counts
- Internal Soft Start
- Internal Compensation
- Under Voltage Protection
- Over Voltage Protection
- Over Temperature Protection
- Small TSOT- 23- 6 and 8- Lead WDFN Packages
- RoHS Compliant and Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HT9293BRTZ#C2928825HTCSEMI · SOT-23-6 | HTCSEMI | SOT-23-6 | On request | Price on request | Quote | |
