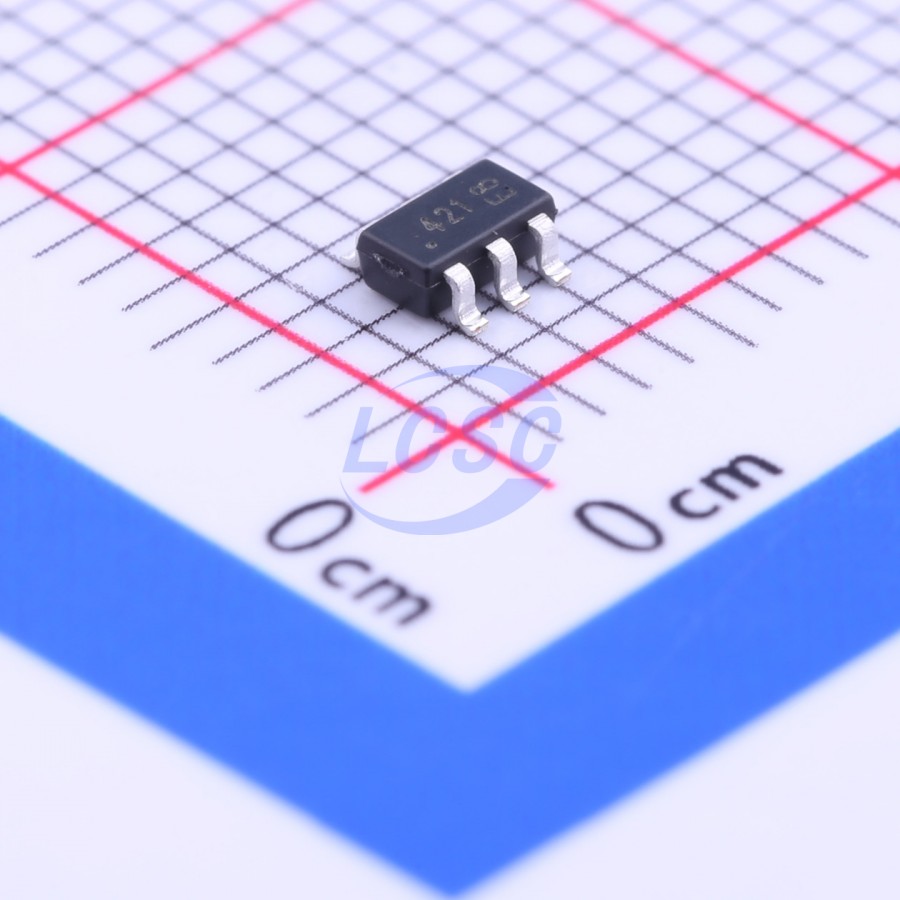

BCR421UW6Q-7
350mA PWM 1 40V 18V SOT-26 LED Drivers RoHS
LINEAR LED CONSTANT CURRENT REGULATOR
- Manufacturer
- DIODES
- Manufacturer part #
- BCR421UW6Q-7
- Store part #
- C154739
- Package / case
- SOT-26
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,037 in stock
#C154739
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹199.47 | ₹199.47 |
| 10+ | ₹168.18 | ₹1,681.80 |
| 30+ | ₹150.80 | ₹4,524.00 |
| 100+ | ₹131.47 | ₹13,147.00 |
| 500+ | ₹122.77 | ₹61,385.00 |
| 1,000+ | ₹112.56 | ₹1,12,560.00 |
1 × ₹199.47
₹199.47
excl. GST
₹235.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BCR421UW6Q-7
₹199.47 for 1 + GST
Specifications
- Output Current
- 350mA
- Operating Temperature
- -55℃~+150℃
- Dimming
- PWM
- Number of Channels
- 1
- Switch tube (built-in/external)
- Built-in
- Features
- Over-Temperature Protection (OTP)
- Output Voltage
- 40V
- Constant Current Accuracy
- 10%
- Voltage - Input(DC)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
These Linear LED drivers are designed to meet the stringent requirements of automotive applications. The BCR420U and BCR421U monolithically integrate transistors, diodes and resistors to function as a Constant Current Regulator (CCR) for linear LED driving. The device regulates with a preset 10mA nominal that can be adjusted with an external resistor up to 350mA. It is designed for driving LEDs in strings and will reduce current at increasing temperatures to self-protect. Operating as a series linear CCR for LED string current control, it can be used in multiple applications, as long as the maximum supply voltage to the device is <40V. With the low-side control, the BCR421U has an Enable (EN) pin which can be pulse-width modulated (PWM) up to 25kHz by a microcontroller for LED dimming. With no need for additional external components, this CCR is fully integrated into an SOT26 minimizing PCB area and component count.
Applications
- Automotive Interior Lighting
- Mood and Decorative Lighting
Key features
- LED Constant Current Regulator using NPN Emitter-Follower with Emitter Resistor to Current Limit IOUT – 10mA±10% Constant Current (Preset)
- IOUT up to 350mA Adjustable with an External Resistor
- VOUT – 40V Supply Voltage
- PD up to 1W in SOT26 (SC74R)
- Low-Side Control Enabling PWM Input < 25kHz (BCR421U)
- Negative Temperature Coefficient (NTC) Reduces IOUT with Increasing Temperature
- Parallel Devices to Increase Regulated Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
- PPAP Capable
