IDCHIPDatasheet (PDF)

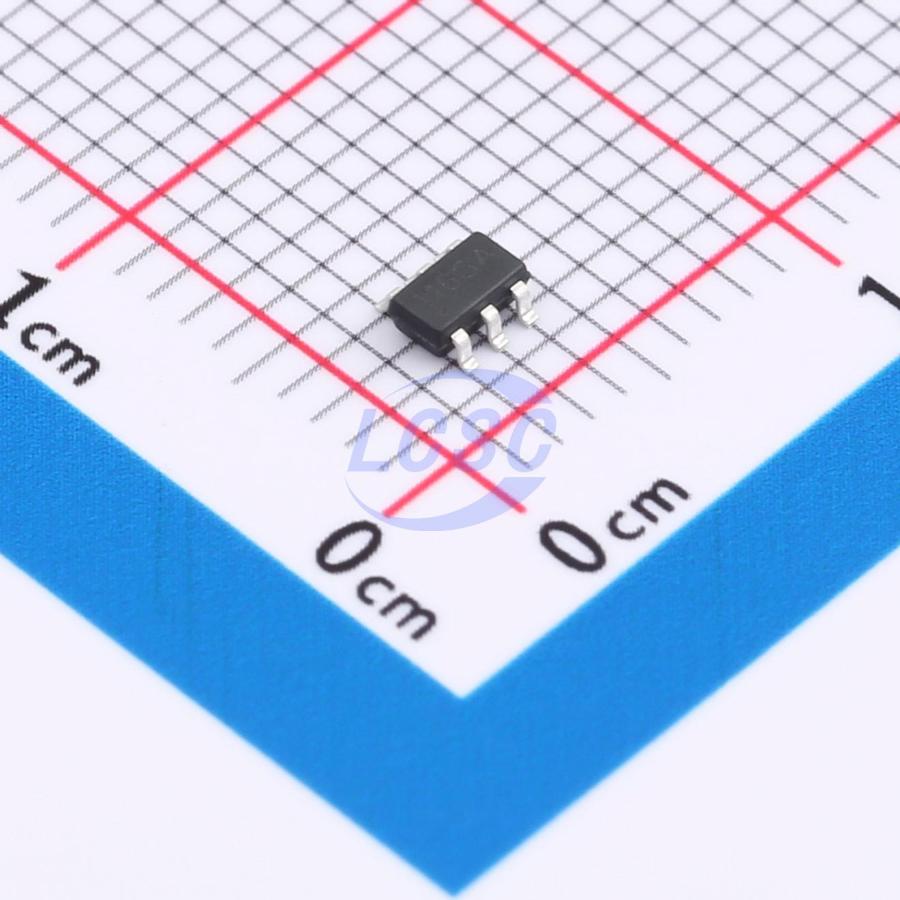

AD116
1.8V~6V SOT23-6 Motor Drivers, Controllers RoHS
SOT23-6ROHS CompliantActive
Single-channel bidirectional motor drive circuit
- Manufacturer
- IDCHIP
- Manufacturer part #
- AD116
- Store part #
- C7463412
- Package / case
- SOT23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,540 in stock
#C7463412
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.36 | ₹63.60 |
| 100+ | ₹5.11 | ₹511.00 |
| 300+ | ₹4.48 | ₹1,344.00 |
| 3,000+ | ₹3.57 | ₹10,710.00 |
| 6,000+ | ₹3.20 | ₹19,200.00 |
| 9,000+ | ₹3.02 | ₹27,180.00 |
10 × ₹6.36
₹63.60
excl. GST
₹75.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD116
₹63.60 for 10 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.8V~6V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 10uA
- Output Current
- 1.1A
- Peak Current
- 2.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
AD116 is a single-channel DC bidirectional motor driver IC with an integrated power MOS full-bridge driver. The circuit consists of a logic section and a power output section, with built-in thermal protection featuring hysteresis. The logic section controls forward rotation, reverse rotation, stop, and braking of the motor, while the power output section can continuously deliver up to 1.1A of current based on logic control.
Applications
- Electronic locks
- Electric tea sets
- Toy aircraft tail fins
Key features
- Operating supply voltage range: 1.5V ~ 6V
- Standby current with inputs A and B low: 0.1μA
- Built-in power transistor, maximum continuous output current: 1.1A
- Directly controllable by TTL logic signals
- Built-in protection diodes for surge current absorption
- Braking applicable with inputs A and B high, forcing motor to stop
- SOT23-6 package
