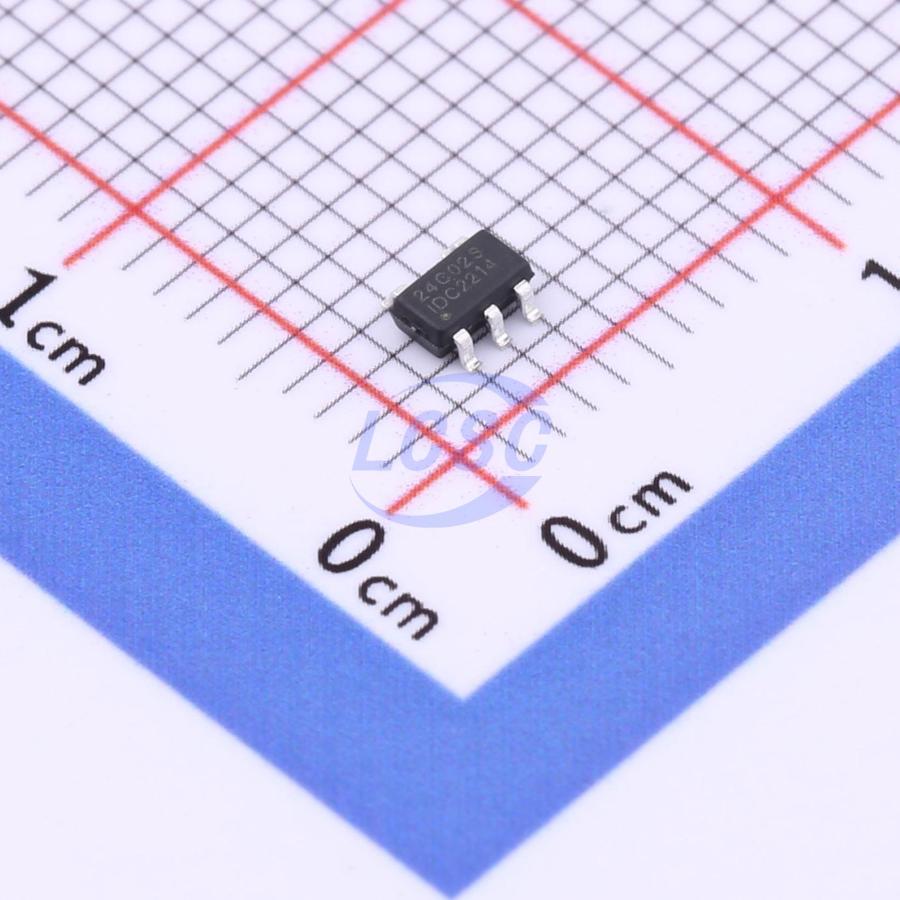

AD24C02
2Kbit 1MHz I2C SOT-23-5 Memory RoHS
Serial Electrically Erasable Programmable Read-Only Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,18,300 in stock
#C5125083
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.60 | ₹66.00 |
| 100+ | ₹5.44 | ₹544.00 |
| 300+ | ₹4.84 | ₹1,452.00 |
| 3,000+ | ₹3.40 | ₹10,200.00 |
| 6,000+ | ₹3.06 | ₹18,360.00 |
| 9,000+ | ₹2.87 | ₹25,830.00 |
10 × ₹6.60
₹66.00
excl. GST
₹77.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD24C02
₹66.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
AD24C02 is a serial Electrically Erasable Programmable Read-Only Memory (EEPROM). It provides 256 bytes of storage organized as 32 pages of 8 bytes each. Random word addressing requires an 8-bit data word address. The device features low-power CMOS technology and a self-timed write cycle. The AD24C02 is available in three package options: SOT23-5, SOP-8, and PDIP-8. Its ease of interfacing, compact footprint, and non-volatile data retention make it widely used in instrumentation and industrial automation control applications.
Applications
- Smart instrumentation
- Laptops
- Computers
- Home appliances
- Automotive electronics
- Communication equipment
- Industrial control
Key features
- Wide supply voltage range: 1.8V ~ 5.5V
- Memory organization: 2K bits (256×8)
- Clock frequency: 1MHz (5V); 400kHz (1.8V, 2.5V, 2.7V)
- Self-timed write cycle (5ms max)
- Page write (8 bytes/page)
- Schmitt trigger inputs for noise suppression
- Two-wire serial interface
- Hardware data write protection
- High reliability: Endurance — 1,000,000 cycles; Data retention — 100 years
