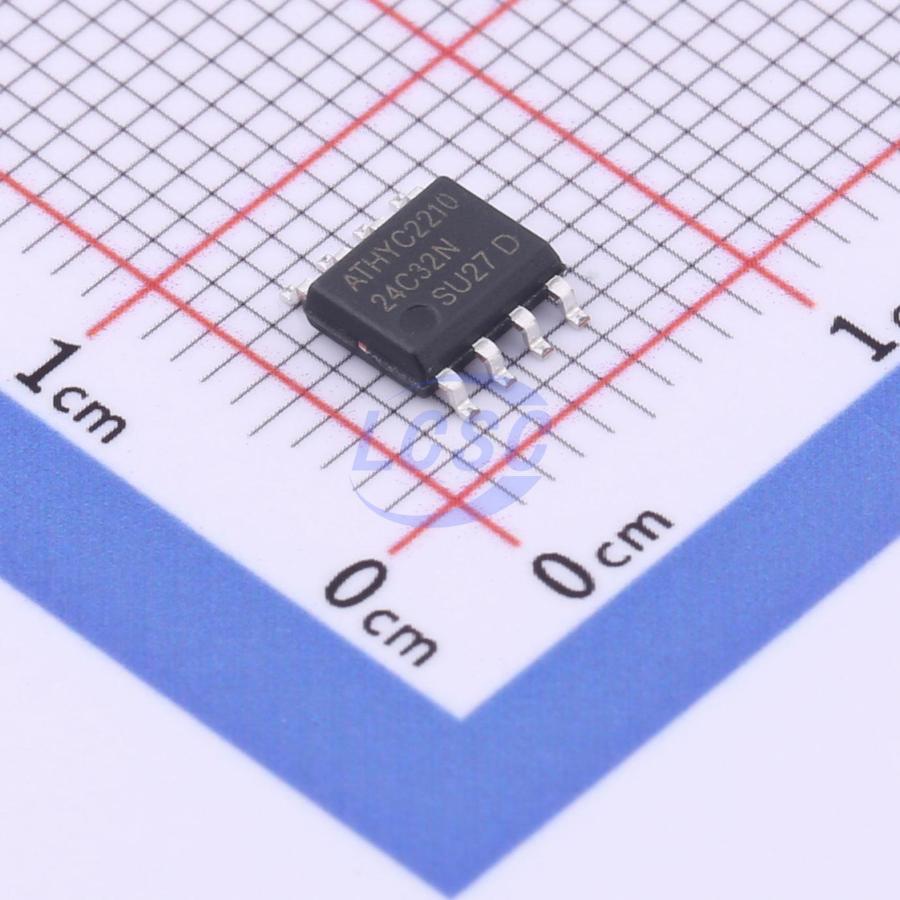

AD24C32
32Kbit 1MHz I2C SOP-8 Memory RoHS
AD24C32 Serial Electrically Erasable Programmable Read-Only Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,990 in stock
#C5125084
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.53 | ₹42.65 |
| 50+ | ₹7.53 | ₹376.50 |
| 150+ | ₹7.04 | ₹1,056.00 |
| 500+ | ₹6.65 | ₹3,325.00 |
| 2,500+ | ₹5.68 | ₹14,200.00 |
| 4,000+ | ₹5.53 | ₹22,120.00 |
5 × ₹8.53
₹42.65
excl. GST
₹50.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AD24C32
₹42.65 for 5 + GST
Specifications
- Operating Temperature
- -10℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
AD24C32 is a serial electrically erasable programmable read-only memory (EEPROM). The memory stores 4096 bytes of data, organized as 128 pages of 32 bytes each. Random word addressing requires a 12-bit data word address. It features low-power CMOS technology and a self-timed write cycle. The AD24C32 is available in three package options: SOT23-5, SOP-8, and PDIP-8. Thanks to its easy interface, compact footprint, and non-volatile data retention, it is widely used in instrumentation and industrial automation control applications.
Applications
- Smart instruments
- Laptops
- Computers
- Home appliances
- Automotive electronics
- Communications equipment
- Industrial control
Key features
- Wide operating voltage range: 1.8V~5.5V
- Memory organization: 32K bits (4096x8bit)
- Clock frequency: 1MHz (5V); 400kHz (1.8V, 2.5V, 2.7V)
- Self-timed write cycle (5ms max)
- Page write (32 bytes/page)
- Schmitt trigger inputs for noise suppression
- 2-wire serial interface
- Hardware data write protection
- High reliability: Endurance — 1,000,000 cycles; Data retention — 100 years
