IDCHIPDatasheet (PDF)

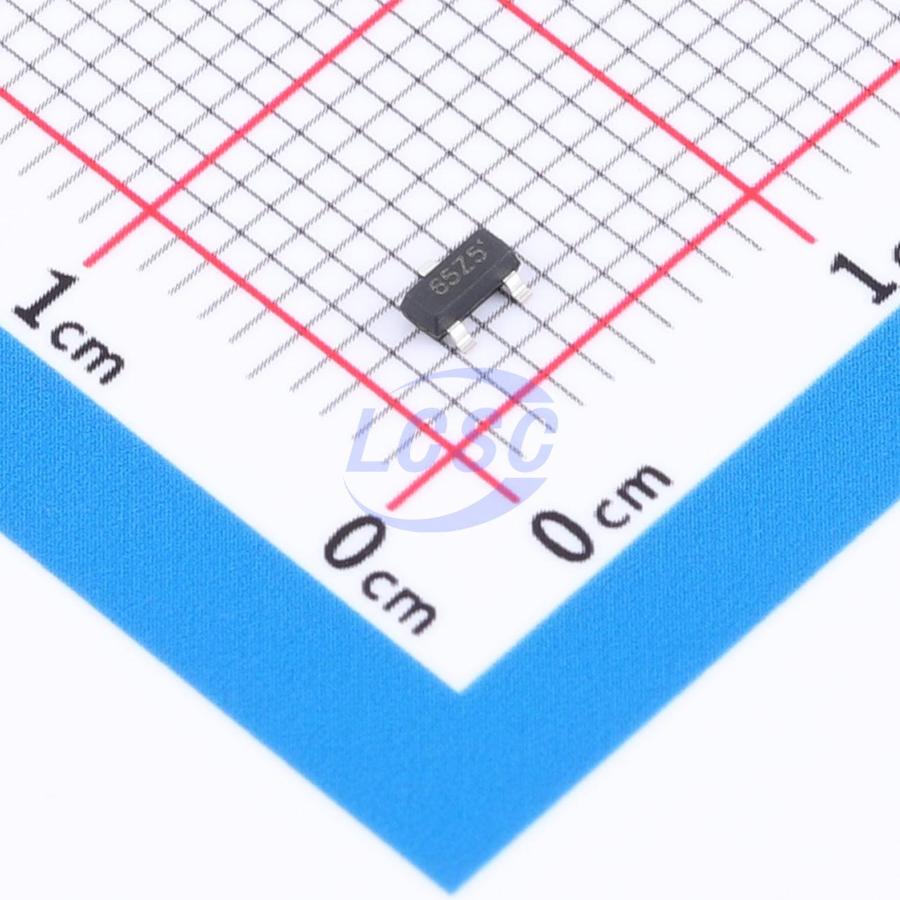

AD6206P-3.0
3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- IDCHIP
- Manufacturer part #
- AD6206P-3.0
- Store part #
- C53427033
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53427033
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.51 | ₹125.50 |
| 500+ | ₹1.93 | ₹965.00 |
| 3,000+ | ₹1.61 | ₹4,830.00 |
| 6,000+ | ₹1.42 | ₹8,520.00 |
| 24,000+ | ₹1.26 | ₹30,240.00 |
| 51,000+ | ₹1.16 | ₹59,160.00 |
50 × ₹2.51
₹125.50
excl. GST
₹148.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD6206P-3.0
₹125.50 for 50 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 6.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
The AD6206 series are CMOS step-down voltage regulators featuring high ripple rejection, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices have an extremely low quiescent current (typical 6.5μA), capable of delivering 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and quiescent current, these devices are particularly suited for battery-powered applications requiring extended battery life, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Automotive electronics
- Voltage references
Key features
- High-accuracy output voltage: ±2.5%
- Output voltage: 1.5V~5.0V (step 0.1V)
- Ultra-low quiescent current (typical = 6.5μA)
- Maximum input voltage up to 6.5V
- Usable as both regulator and voltage reference
- Package: SOT23-3
