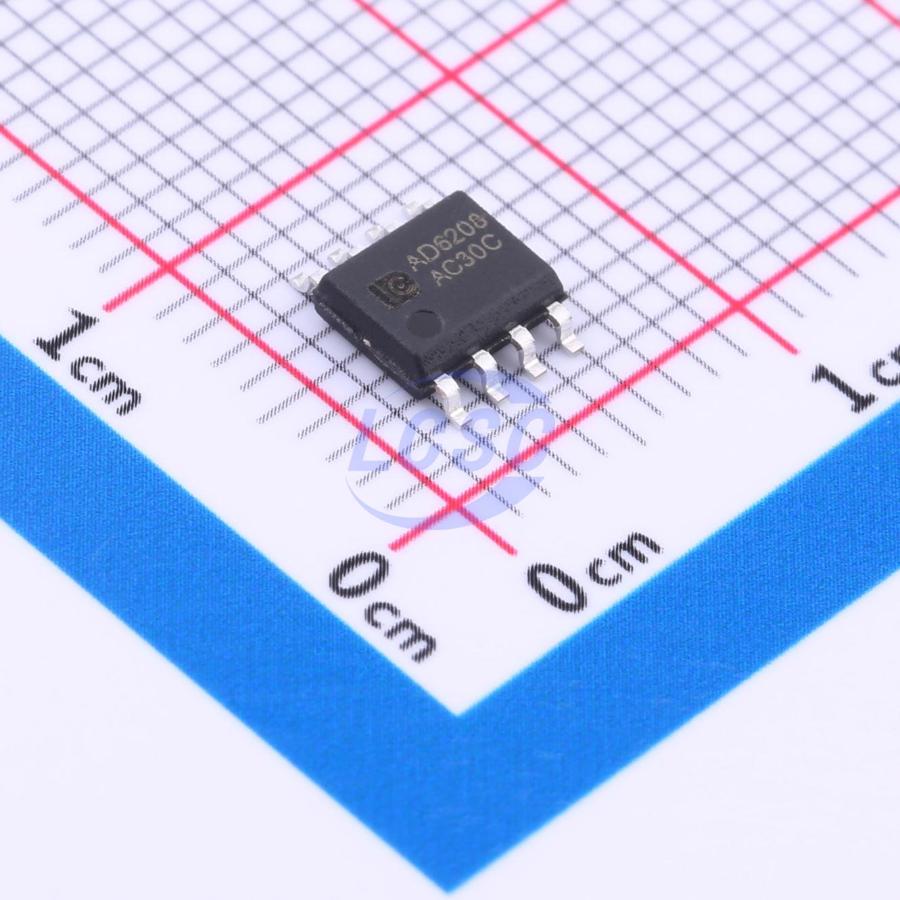

AD6208S
4.5V~18V SOP-8 Motor Drivers, Controllers RoHS
100mA single-channel bidirectional motor drive circuit
- Manufacturer
- IDCHIP
- Manufacturer part #
- AD6208S
- Store part #
- C5359733
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,490 in stock
#C5359733
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.46 | ₹54.60 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 1,000+ | ₹3.31 | ₹3,310.00 |
| 4,000+ | ₹2.96 | ₹11,840.00 |
| 8,000+ | ₹2.79 | ₹22,320.00 |
10 × ₹5.46
₹54.60
excl. GST
₹64.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AD6208S
₹54.60 for 10 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 100nA
- Output Current
- 200mA
- Peak Current
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
AD6208S is a single-channel DC bidirectional motor driver IC featuring an integrated full-bridge power MOS driver with built-in clamp diodes for dissipating reverse surge current from inductive loads. The circuit consists of a logic section and a power output section. The logic section controls forward rotation, reverse rotation, stop, and braking of the motor, while the power output section can continuously deliver up to 100mA of current based on logic control.
Applications
- DVD players
- Cassette recorder bi-directional motors
- Camera IR-CUT filter drivers
Key features
- Wide operating supply voltage range: 4.5V ~ 18V
- Low standby current when inputs A and B are low: 0.4mA
- Built-in power transistors, maximum continuous output current: 100mA
- Inputs compatible with TTL/CMOS logic levels, excellent noise immunity
- Built-in protection diodes for surge current absorption
- Braking applicable when inputs A and B are high, forcing motor to stop
- SOP-8 package
