AD8002D

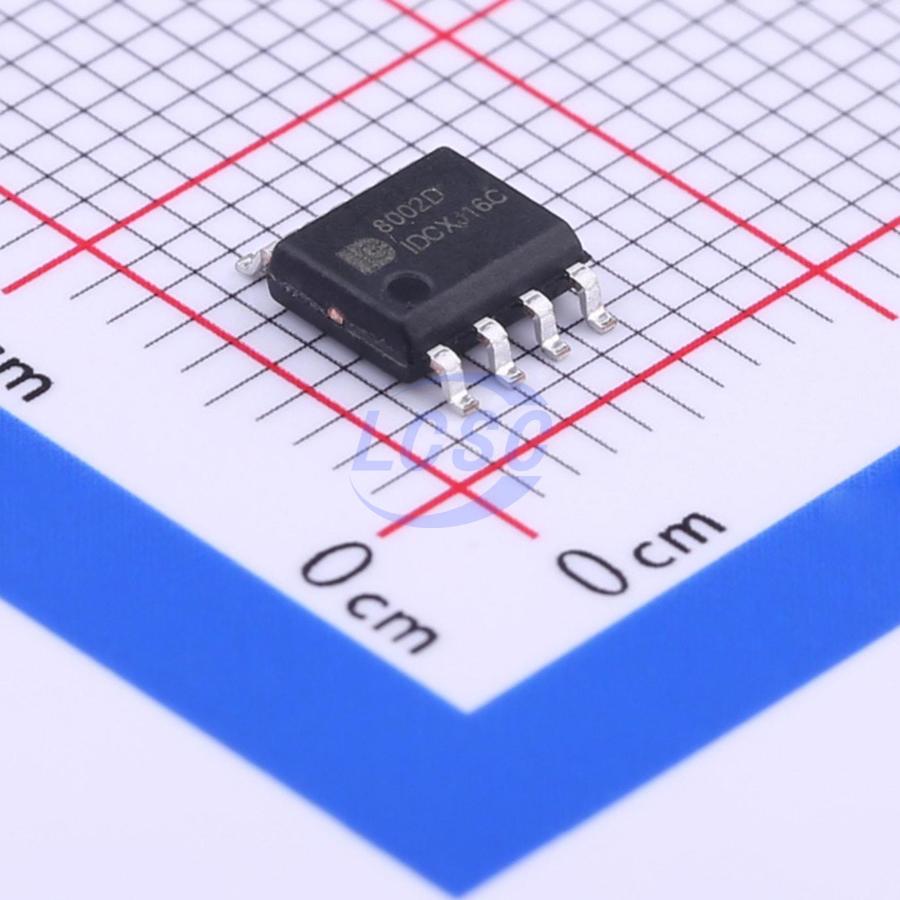

AD8002D is a Class AB, mono with shutdown mode, bridge audio power amplifier. At 1KHz input with 5V supply voltage, the maximum output power is: 3W (4Ω load, THD·10%), 2W (4Ω load, THD<1%); total harmonic distortion plus noise within the audio range is less than 1% (<20Hz·20KHz). AD8002D features a simple application circuit requiring minimal external components to deliver high-quality output power. The 8002D output requires no external coupling capacitors, bootstrap capacitors, snubber networks, or feedback resistors. AD8002D adopts SOP package, making it particularly suitable for low-power, compact portable systems. The 8002D can enter shutdown mode via control input to reduce power consumption. The 8002D incorporates an internal thermal shutdown protection mechanism. The 8002D operates stably and is unity-gain stable. The amplifier voltage gain can be adjusted by configuring external resistors for convenient application.

Applications

• Personal computers
• Portable consumer electronics
• Passive speakers
• Toys and gaming consoles

Key features

• High output power (4Ω, 1KHz), THD+N<10% (3W); THD+N<1% (2W)
• Low shutdown mode leakage current: 18μA (typical)
• SOP8 package
• Externally adjustable gain
• Wide supply voltage range: 2.2V - 5.5V
• No output coupling capacitor, bootstrap capacitor, or snubber network required
• Unity-gain stable
