ADIDatasheet (PDF)

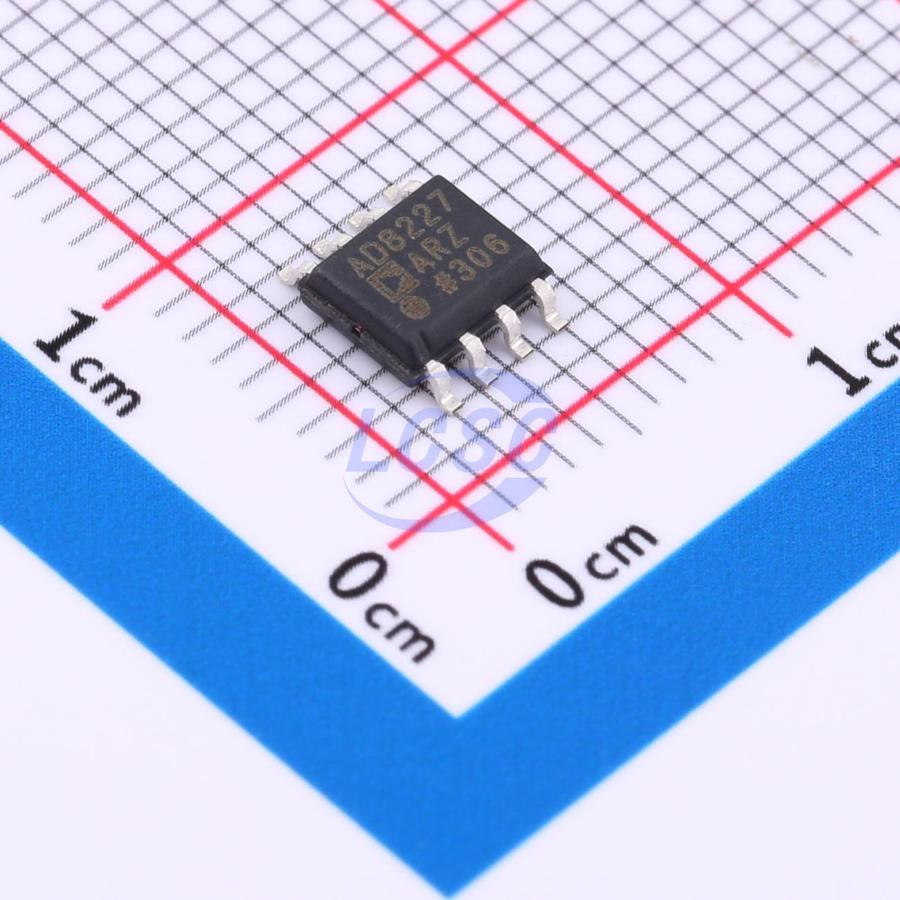

AD8227ARZ-R7
13mA 1 200uV 0.8V/us 100dB 20nA 350uA Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier
- Manufacturer
- ADI
- Manufacturer part #
- AD8227ARZ-R7
- Store part #
- C2059223
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C2059223
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹367.61 | ₹367.61 |
| 10+ | ₹359.14 | ₹3,591.40 |
| 30+ | ₹353.49 | ₹10,604.70 |
| 100+ | ₹347.84 | ₹34,784.00 |
1 × ₹367.61
₹367.61
excl. GST
₹433.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AD8227ARZ-R7
₹367.61 for 1 + GST
Specifications
- Settling time
- 14us
- Output Current
- 13mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 0.8V/us
- Input Offset Current(Ios)
- 1.5nA
- Input Offset Current Drift (Ios TC)
- 5pA/℃
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 20nA
- Power Supply Rejection Ratio (PSRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 350uA
- Features
- External resistor gain;Overvoltage protection
- Input Voltage Noise Density
- 24nV/√Hz@1kHz
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.2V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.124 g
